Grease Anti-Corrosion Performance Tester Motor 1450r/Min±50r/Min ASTM D1743
Product Details
| Motor Speed | 1450r/min±50r/min | Motor Power | 60W |
|---|---|---|---|
| Bearing Vertebral Body | LM11949 | Bearing Outer Ring | LM11910 |
| Instrument Size | 285*265*480 Mm | Working Power Supply | AC220V±10% 50Hz |
| Highlight | grease anti-corrosion tester motor,lube oil testing equipment ASTM D1743,grease performance tester 1450rpm |
||
Product Description

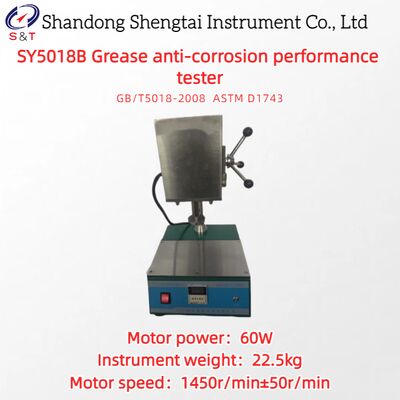

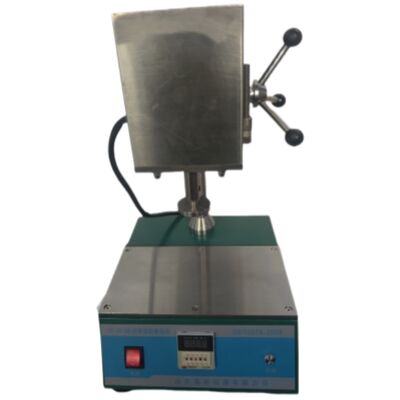

SY5018B Grease anti-corrosion performance tester
SY5018B Grease anti-corrosion tester is designed and manufactured according to GB/T5018-2008 ASTM D1743 standard. It is suitable for testing the anti-corrosion performance of grease with tapered roller bearings coated with grease under wet conditions.
SY5018B grease anti-corrosion tester is beautiful in appearance design, generous, reasonable in structure design, easy to operate and accurate in determination.
Technical parameters
| Working power supply | AC220V±10% 50Hz |
| Motor speed | 1450r/min±50r/min |
| Motor power | 60W |
| Bearing vertebral body | LM11949 |
| Bearing outer ring | LM11910 |
| Instrument size | 285*265*480 mm |
| Instrument weight | 22.5kg |
| Outer packaging dimensions | 535*380*660 mm |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | Bearing grease applicator | 1 | Set | |
| 3 | Fuse tube | 2 | Piece | 10A |
| 4 | Bearing outer ring | 3 | Piece | LM11910 |
| 5 | Bearing cone | 3 | Piece | LM11949 |
| 6 | Bearing bracket | 3 | Set | M6*3 white steel bolt |
| 7 | Plastic container | 3 | Set | With lid |
| 8 | Hand pliers | 1 | Piece | |
| 9 | Syringe | 1 | Set | 100ml capacity, 200mm long 16 # needle |
| 10 | Load the spring | 3 | Piece | |
| 11 | O-ring | Each 3 | Piece | Φ33.5*3.55, Φ45*3.55, Φ50*5.3 |
| 12 | Template | 1 | Piece | |
| 13 | Instruction Manual | 1 | Copy | |
| 14 | Packing List | 1 | Copy | |
| 15 | Certificate of Conformity Warranty Card | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
