Lubricating Grease Mechanical Impurity Content Tester Microscope Method SH/T 0336

  • Lubricating Grease Mechanical Impurity Content Tester Microscope Method SH/T 0336
  • Lubricating Grease Mechanical Impurity Content Tester Microscope Method SH/T 0336
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification SH/T 0336
Model Number SY0336
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Eyepiece Category Bieyepiece Eyepiece Micrometer Scale 0.01mm
Magnification > 100 Times Observation Head Hinged 30 Tilt, 360° Rotation
Coarse Fine Tuning Focus Range 30mm Standard Blood Cell Count Board Standard
Highlight

Lubricating grease impurity tester

,

Microscope method grease tester

,

SH/T 0336 lube oil analyzer
Leave a Message
Product Description

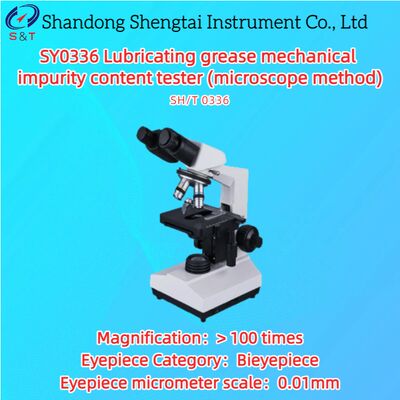

SY0336 Lubricating grease mechanical impurity content tester (microscope method)

SY0336 Lubrication grease mechanical impurity degree meter is designed and manufactured according to the national industry standard SH/T 0336-1994 "grease impurity content determination method (microscope method)". It is an environmental protection scientific detection method for mechanical impurity content detection of lubricating grease.

Standard: SH/T 0336

Technical indicators

Eyepiece Category Bieyepiece
Eyepiece micrometer scale 0.01mm
Magnification > 100 times
Observation head hinged 30 tilt, 360° rotation
Coarse fine tuning focus range 30mm
Micro lattice value 2um coarse micro coaxial focus, coarse tension adjustable, with locking and limit
Standard blood cell count board standard
Lighting 220V Kohler lighting, brightness adjustable, halogen tungsten bulb 6V20W
Concentrator 1.25nA Abbe condenser, variable light bar with color filter (up and down)

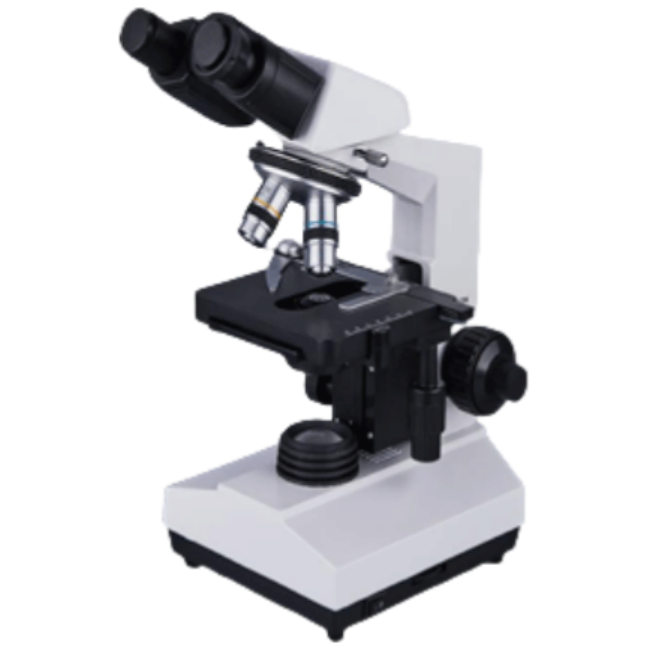

Lubricating Grease Mechanical Impurity Content Tester Microscope Method SH/T 0336 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Main machine 1 Set
2 Eyepiece 1 Piece
3 Eyepiece tube 1 Piece
4 Objective lens converter 1 Piece
5 Objective lens 1 Piece
6 Blood cell counting board 1 Piece
7 Packing list 1 Copy
8 Instructions 1 Copy



Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

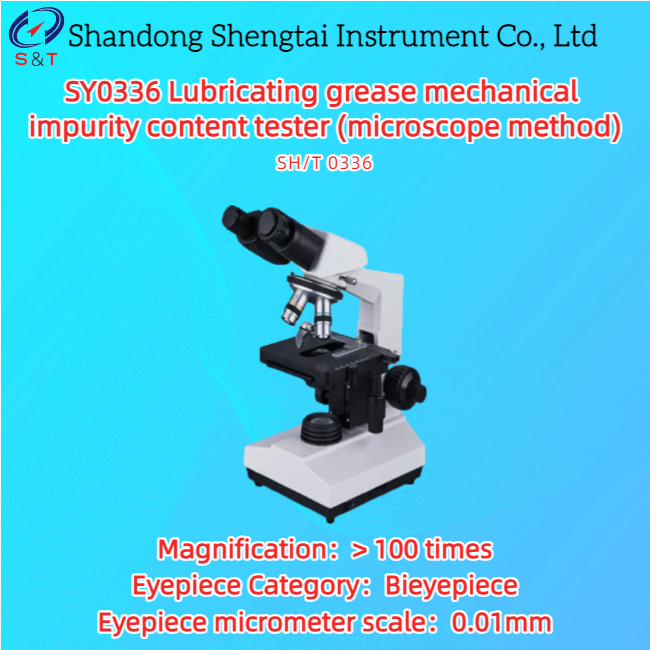

Lubricating Grease Mechanical Impurity Content Tester Microscope Method SH/T 0336 1

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
