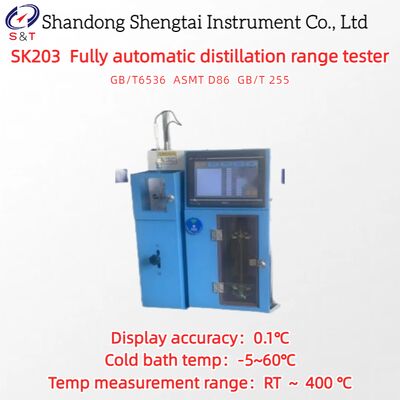

PT100 Sensor Fully Automatic Distillation Range Tester RT ～ 400 ℃ Cold Bath -5 ~ 60℃ ASTM D86

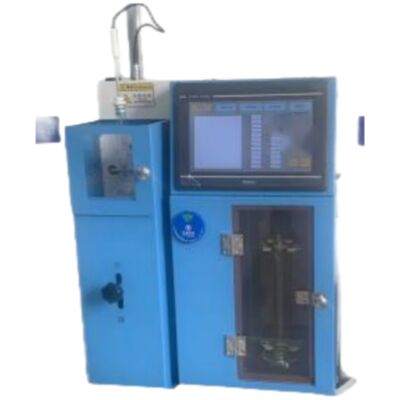

SK203 Fully automatic distillation range tester

The SK203 fully automatic distillation range analyzer adopts a color LCD display screen, Chinese menu human-machine dialogue, guided operation, and the measurement process is fully automated. Comply with the national standard GB/T6536 "Determination of Distillation of Petroleum Products" and GB/T6536, ASMT D86

Adopting embedded computers, imported industrial control computers, large LCD touch screens, friendly human-machine dialogue interfaces, and convenient experimental operations. By using single-chip microcomputer and intelligent control technology, the heating and cooling of the distillation experiment process, the tracking of distillate liquid level, the control of distillation rate, the control of recovered liquid volume, temperature recording, and the printing of test results are all automatically completed.

Standard: GB/T6536 ASMT D86 GB/T 255

Functional characteristics

● The instrument is automatically controlled and tested by an industrial computer throughout the entire process, using an embedded computer with a full touch 10.4-inch LCD display for testing, and an imported industrial control computer,

● Large screen LCD touch screen, friendly human-machine dialogue interface, and convenient experimental operation.,

● Adopting microcontroller and intelligent control technology, the entire process displays temperature and volume data and related curves.

● The temperature of the cold tube and the temperature of the measuring cylinder chamber are both cooled by mechanical compressors. Internal circulation of cooling medium. The coolant can be checked and added once every 3 years.

● The heating and cooling of the distillation test process, the tracking of distillate liquid level, the control of distillation rate, the control of recovered liquid volume, temperature recording, and the printing of test results are all automatically completed.

● The heating of the distillation furnace is automatically controlled to control the flow rate of the sample from the initial boiling point to 95% within 4-5ml per minute.

● Can provide initial and final distillation point temperature values, as well as temperature and flow rates for each percentage point.

● Automatic detection of local atmospheric pressure and automatic correction to temperature at standard atmospheric pressure.

● You can choose to stop the test based on steam temperature or recovery volume.

● The instrument can store, query, and print test results

Technical Parameter

● The initial boiling point temperature is detected by an optical fiber sensor.

● Volume measurement: Liquid level tracking system, mainly composed of stepper motor and optical fiber liquid level sensor, the motor steps 0.01ml each time.

● The equipment has the function of automatically detecting local atmospheric pressure and automatically correcting to the temperature at standard atmospheric pressure.

● Equipped with a fire extinguishing system, manual nitrogen extinguishing can be used in case of a fire to prevent safety accidents caused by the rupture of the heating distillation flask (nitrogen cylinders must be provided by the customer).

● Equipped with a safety temperature setting function, the room temperature can be freely set between 400 ℃. If the heating temperature exceeds the set safety temperature, the instrument can automatically stop the experiment and immediately blow air to dissipate heat.

● This instrument can automatically detect and display the temperature and flow rate time at every 5% volume point.

● The instrument can automatically detect the temperature and occurrence time of the initial boiling point and final boiling point.

● USB data export function.

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
