Abel Closed-Mouth Scintillator Measurement -30 - 70℃ Stirring Speed 30r/Min ISO 13736
Product Details
| Power | 350W | Ignition Method | Gas Ignition |
|---|---|---|---|
| Measuring Range | -30-70 ℃ (optional Low-temperature Circulating Bath) (RT-70 ℃ Without Bath) | Stirring Speed | 30 R/min |
| Repetition Error | <±1°C | Ambient Temp | 5～40℃ |
| Highlight | closed-mouth scintillator lube oil tester,ISO 13736 oil testing equipment,scintillator measurement with stirring speed |
||
Product Description

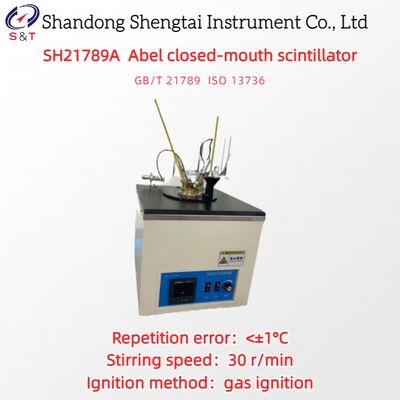

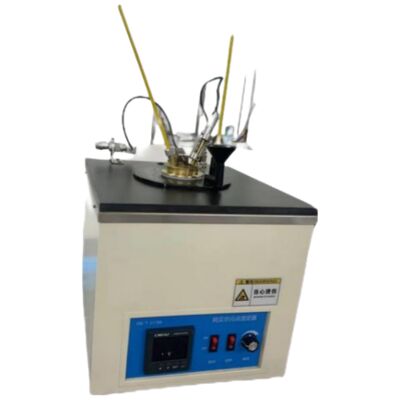

SH21789A Abel closed-mouth scintillator
Flash point: suitable for the determination of petroleum products and other liquids with flash point between -30 °C ~ 70 °C, precision is only suitable for samples with flash point between -5 °C ~ 66.5 °C, not suitable for water-based coatings. Can be used for flash point determination of aviation (jet) fuels.
H21789A flash point tester (Abel closed cup method), meets the requirements of GB/T 21789, ISO 13736 Test method for determination of flash point of petroleum products and other liquids (Abel closed cup method).
| Product model | SH21789A |
| Product Name | Flash point tester (Abel closed cup method) |
| Manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Test item | It is suitable for determining petroleum products and other liquids with flash point between -30 °C ~ 70 °C, and the precision is only suitable for samples with flash point between -5 °C ~ 66.5 °C, not suitable for water-based coatings |
| Standard | GB/T 21789 ISO 13736 |
| Technical characteristics | Measuring range:-30～70℃ |
Features
● All stainless steel gas pipe
● High-precision needle valve
● Standard reagent calibration
● Optional HKT-001A low temperature circulation bath
Technical parameters
| Working power supply | AC220V±10% 50Hz |
| Power | 350W |
| Ignition method | gas ignition |
| Measuring range | -30-70 ℃ (optional low-temperature circulating bath) (RT-70 ℃ without bath) |
| Stirring speed | 30 r/min |
| Repetition error | <±1°C |
| Ambient temp | 5～40℃ |
| Relative humidity | ≤85% |
| Instrument size | 480*450*550mm |
| Instrument weight | 40kg |
| Package size | 560*550*650mm |
| Package weight | 45kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | Set | 1 | |
| 2 | Fuse wire | pieces | 1 | |
| 3 | Test cup | piece | 1 | |
| 4 | Test cup lid | Set of | 1 | |
| 5 | Thermometer | Piece | 2 | |
| 6 | Thermometer sleeve | pieces | 2 | |
| 7 | Instructions | copy | 1 | |
| 8 | Packing list | copy | 1 | |
| 9 | Warranty card | copy | 1 |
