Biodiesel Automatic Oxidation Stability Tester RT ～ 220℃ Air Flow 1 ～ 30L/H SH/T 0825

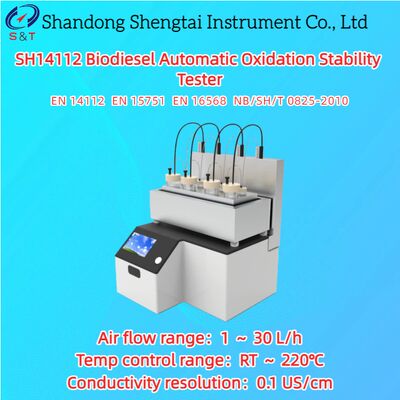

SH14112 Biodiesel Automatic Oxidation Stability Tester

The SH14112 biodiesel automatic oxidation stability analyzer can determine the oxidation stability of biodiesel (fatty acid methyl ester, or FAME for short) and biodiesel blended fuels.

On the biodiesel oxidation stability tester, the induction time or oxidation stability index (OSI) is determined by increasing the temperature and continuously blowing air to accelerate the aging of the sample, in order to determine the fastest time for oxidation rate to occur.

Meets the following standards: EN 14112, EN 15751, EN 16568, NB/SH/T 0825-2010 Determination of oxidation stability of fatty acid methyl esters Accelerated oxidation method.

Technical Specifications

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output data to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel

● It can be used for single machine touch screen experiments or computer-controlled instruments for experiments.

● Heating module: can be heated in a single group or multiple groups; The heating temperature can be set separately for each heating hole

● Equipped with specialized calculation software, it can automatically calculate the oxidation stability time.

● Instrument display: The instrument itself has a color display screen, which can display the temperature of each heating module, gas flow rate, measurement cell status, and conductivity value of each measurement position

Heating module

● Protection function: It has over temperature protection function and can automatically stop when the temperature exceeds 260 ℃.

● Temperature control method: Four sets of temperatures can be individually controlled, and the four sets of temperatures can be set to the same temperature or different temperatures.

Gas flow control module

● The instrument is equipped with a built-in diaphragm air pump

● Specialized electronic air flow pump

Conductivity measurement system

● Real time measurement data of conductivity meter, automatic recording and storage of data by large screen LCD industrial computer, multi-channel data input and processing, real-time display of conductivity during oil oxidation process and induction period

Software computing module

● Equipped with a powerful database data management system: capable of automatically calculating oxidation stability time based on results.

● Automatically calculate the maximum second derivative of the curve to determine the induction time

● Automatically deduce the induction time of the sample at room temperature of 20 or 25 degrees Celsius

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.

Packing List
