Liquefied Petroleum Vapor Pressure Tester RT ～ 70℃ Heating 1.8KW Accuracy ±0.1℃ ASTM 1267
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temp Control Range | RT ～ 70℃ | Stirring Motor Power | 15W |
|---|---|---|---|
| Temp Control Accuracy | ±0.1℃ | Heating Power | 1.8KW |
| Package Size | 480*450*750mm | Power Supply | AC220V±10% 50Hz |
| Highlight | LPG vapor pressure tester ASTM 1267,petroleum vapor tester RT 70℃ heating,lube oil testing equipment 1.8KW |
||
Product Description

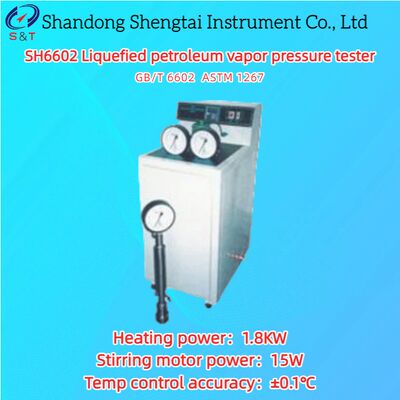

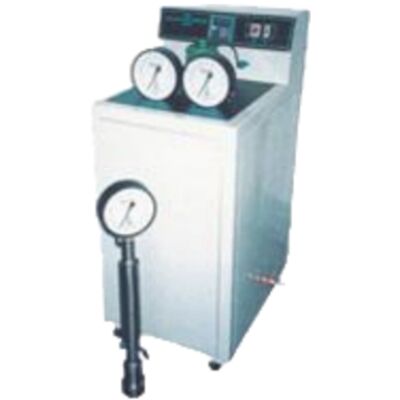

SH6602 Liquefied petroleum vapor pressure tester
An overview
SH6602 LPG vapor pressure tester is designed and manufactured according to GB/T6602 "LPG vapor pressure measurement method". It is suitable for liquefied petroleum gas whose boiling point is higher than 0℃, volume content of hydrocarbon is less than 5%, and its vapor is not more than 1550kPa at 37.8℃.
| Testing items | Applicable to the detection of liquefied petroleum gas with a boiling point above 0 ℃, a hydrocarbon volume content of less than 5%, and a vapor of no more than 1550Kpa at 37.8 ℃ |
| Standards | GB/T 6602 |
| Simple technical features | Temp control accuracy:±0.1℃ |
Technical parameters
| Power supply | AC220V±10% 50Hz |
| Heating power | 1.8KW |
| Stirring motor power | 15W |
| Temp control accuracy | ±0.1℃ |
| Pressure gauge | circular pointer pressure gauge 0 ～ 2.5Mpa |
| Temp control range | RT ～ 70℃ |
| Package size | 480*450*750mm |
| Package weight | 50kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument ,they may be alight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Vapor pressure meter | Set | 1 | |
| 2 | Steam bomb | Set | 2 | |
| 3 | Pressure gauge | Piece | 2 | |
| 4 | Mercury thermometer | Piece | 1 | |
| 5 | Instruction | Copy | 1 | |
| 6 | Packing list | Copy | 1 | |
| 7 | Certificate warranty card | Copy | 1 |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
