Fully Automatic Distillation Range Boiling Range Tester RT ～ 500℃ Compressor Cooling ASTM D86

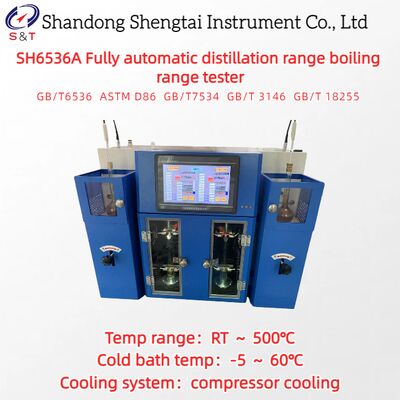

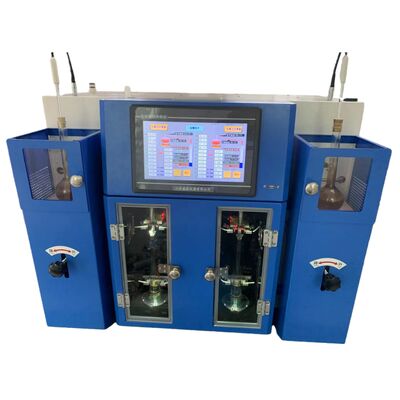

SH6536A Fully automatic distillation range boiling range tester upgraded dual tube

The SH6536A fully automatic dual tube boiling range analyzer adopts a color LCD display screen, Chinese menu human-machine dialogue, guided operation, and the measurement process is fully automated. Designed and manufactured in accordance with the national standard GB/T6536 "Determination of Distillation Range of Petroleum Products" and GB/T6536, ASTM D86 standards GB/T7534-2004 for determination of boiling range of volatile organic liquids for industrial use, GB/T 3146-1982 for determination of distillation range of benzene products, GB/T 18255 for determination of distillation range of coking viscous oil products, GB/T 26984 and GB/T 3146.1-2010 for determination of distillation range of methanol and alcohol products for industrial aromatic hydrocarbons and related materials. Suitable for organic liquids with boiling point at atmospheric pressure and stable chemical properties during distillation (such as hydrocarbons, esters, alcohols, ketones, ethers, and similar organic compounds). Simultaneously applicable to the determination of distillation range of petroleum products, volatile organic liquids for industrial use, organic solvents for raw materials, and other boiling ranges.

Adopting embedded computers, imported industrial control computers, large LCD touch screens, friendly human-machine dialogue interfaces, and convenient experimental operations. By using single-chip microcomputer and intelligent control technology, the heating and cooling of the distillation experiment process, the tracking of distillate liquid level, the control of distillation rate, the control of recovered liquid volume, temperature recording, and the printing of test results are all automatically completed.

Main performance characteristics

● The instrument is automatically measured and controlled by an industrial computer throughout the entire testing process, with a full touch LCD display test.

● Display temperature and volume data and related curves throughout the entire process.

● The liquid level tracking system consists of a high-precision stepper linear motor and an imported photoelectric tracker.

● The temperature of the cold tube and the temperature of the measuring cylinder room are both mechanically cooled, and the compressor is a well-known foreign manufacturer. Internal circulation of cooling medium.

● Automatic control of heating in the distillation furnace to control the flow rate of the sample from the initial boiling point to 95% within 4-5ml per minute.

● Can provide initial and final distillation point temperature values, as well as temperature and flow rates for each percentage point.

● Real time animated display of the experimental process and real-time temperature of the recycling room, volume of the recycling room, real-time atmospheric pressure and condensation temperature, etc.

● Steam sensor: German imported glass PT100 platinum resistor.

● Automatic detection of local atmospheric pressure and automatic correction to temperature at standard atmospheric pressure.

● You can choose to stop the test based on steam temperature or recovery volume.

● The instrument can store, query, and print test results.

● USB data export function

Technical Parameter

● The initial boiling point temperature is detected by an optical fiber sensor

● Automatic detection of measuring cylinder and guide vane function.

● Volume measurement: The liquid level tracking system mainly consists of a stepper motor and an imported optical fiber liquid level sensor, with each step of 0.01ml by the motor

● The equipment has the function of automatically detecting local atmospheric pressure and automatically correcting to temperature at standard atmospheric pressure

● Equipped with a fire extinguishing system, if a fire occurs, manual nitrogen extinguishing can be carried out to prevent safety accidents caused by the explosion of heated distillation flasks (nitrogen bottles need to be provided by the customer)

● Equipped with a safety temperature setting function, the room temperature can be arbitrarily set to 400 ℃. If the heating temperature exceeds the set safety temperature, the instrument can automatically stop the experiment and immediately blow air to dissipate heat.

● This instrument can automatically detect and display the temperature and flow rate time at every 5% volume point.

● The instrument can automatically detect the temperature and occurrence time of the initial and final boiling points.

● Multiple automatic stop methods can be selected, such as automatic stop of final distillation point, set to stop when reaching the specified temperature, and set to stop when reaching the specified volume.

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Instrument Quality Assurance Certificate

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
