Petroleum Sediment Detector Heating 300W * 2 Extraction Method Dual Type ASTM D473
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Heating Power | 300W * 2 | Whole Power | No More Than 600W |
|---|---|---|---|
| Instrument Size | 330*360*145mm | Instrument Weight | 6.2kg Without Flask |
| Heating Control | Bidirectional Silicon Controlled Stepless Voltage Regulation Control | Working Power Supply | AC220V±10% 50Hz |
| Highlight | Petroleum sediment detector heating 300W,Lube oil testing equipment extraction method,Dual type ASTM D473 sediment detector |
||
Product Description

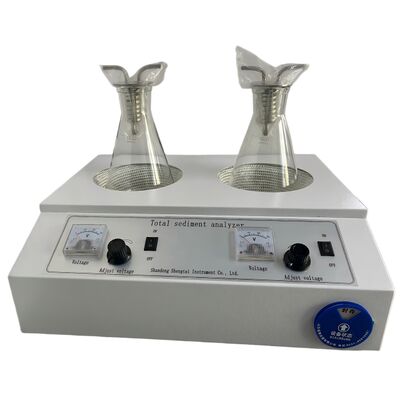

SH6531 Petroleum sediment detector
SH6531 Petroleum Sediment tester is according to the People's Republic of China standard GB/T 6531 "Determination of precipitate in crude oil and fuel oil" and ASTMD 473 , according to GB/T6531 standard to determine the content of precipitate in crude oil and fuel oil.
This instrument is a double structure, can carry out two samples at the same time test.
ASTM D473 Petroleum Product Oil Sediment Tester
ASTM D473 Sediment Content Testing Equipment Residual Fuel Oils Total Sediment Tester
Main technical indicators
| Working power supply | AC220V±10% 50Hz |
| Heating power | 300W * 2 |
| Heating control | bidirectional silicon controlled stepless voltage regulation control |
| Ambient temp | ≤35℃ |
| Relative humidity | ≤85% |
| Whole power | No more than 600W |
| Instrument size | 330*360*145mm |
| Instrument weight | 6.2kg without flask |
| Package size | 520*420*380mm |
| Package weight | 14.22kg wooden |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| Number | Name | Quantity | Unit | Note |
| 1 | Host | 1 | Unit | |
| 2 | 1000ml conical flask | 2 | Piece | Glass |
| 3 | Condenser | 2 | Piece | Metal |
| 4 | Metal wire bracket | 2 | Piece | Stainless steel |
| 5 | Extraction sleeve | 2 | Piece | Ceramics |
| 6 | Power cord | 1 | Root | |
| 7 | Instruction manual | 1 | Copy | |
| 8 | Certificate of Conformity Warranty Card | 1 | Copy |
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
