Crankshaft Simulation Tester RT ～ 400℃ Timing 0 - 99h Thermal Oxidation Stability SH/T 0300
Product Details
| Temp Control Range | Aluminum Plate (RT ～ 400℃) | Temp Control Accuracy | ±1℃ |
|---|---|---|---|
| Timing | 0 ～ 99h | Motor Speed | 1250r/min |
| Instrument Size | 510*300*600mm | Instrument Weight | 16kg |
| Highlight | crankshaft simulation tester thermal oxidation,lube oil testing equipment RT 400℃,thermal stability tester SH/T 0300 |
||
Product Description

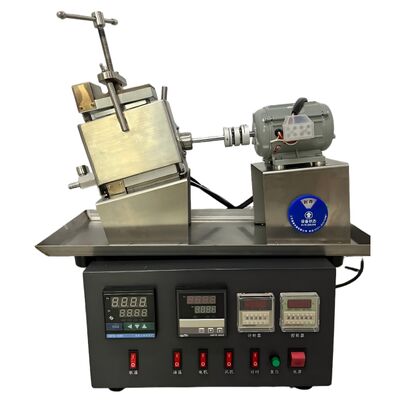

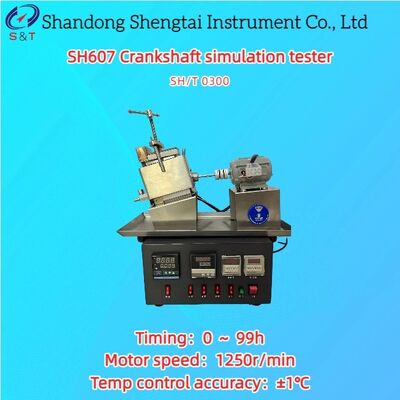

SH607 Crankshaft simulation tester
Internal combustion engine oil coking tendency tester
SH607 crankshaft simulation tester is designed and manufactured according to the petrochemical industry standard SH/T0300 "crankcase simulation test method".
It is suitable for evaluating the thermal oxidation stability of additives and internal combustion engine oil containing additives. It is a simulation test method for selecting the compound formulations of detergents, anti-oxygen anti-corrosion agents and oils in scientific research work.
The instrument is composed of two parts, the control box and the main machine, with upper and lower structure.Control box part with two digital display temperature control meter, two digital display time meter.
The digital display temperature control meter controls the temperature of the oil tank and the test board respectively. It has the characteristics of intuitive display, convenient operation and high temperature control precision.
Time meter can realize the total working hours and automatic control of motor turn, stop.
The host part is made of stainless steel, with simple shape, beautiful appearance, corrosion resistance and other characteristics
Technical parameters
| Power supply | AC220V±10% 50HZ |
| Input power | ≤1000W |
| Temp control range | Aluminum plate (RT ～ 400℃) |
| Temp control accuracy | ±1℃ |
| Timing | 0 ～ 99h |
| Motor speed | 1250r/min |
| Motor power | 15W |
| Instrument size | 510*300*600mm |
| Instrument weight | 16kg |
| Test bench size | 505*227*395mm |
| Test bench weight | 9.35kg |
| Controller size | 350*300*207mm |
| Controller weight | 64kg |
| Test bench package size | 630*358*470mm |
| Test bench package weight | 15.72kg |
| Controller package size | 850*468*289mm |
| Controller package weight | 11.28kg |
| Total package weight | 27kg, Cardboard wooden pallet, 2 pieces |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Temperature sensor | 1 | Piece | On the host |
| 3 | power cord | 1 | Piece | |
| 4 | Instructions | 1 | Copy | |
| 5 | Packing list | 1 | Copy | |
| 6 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
