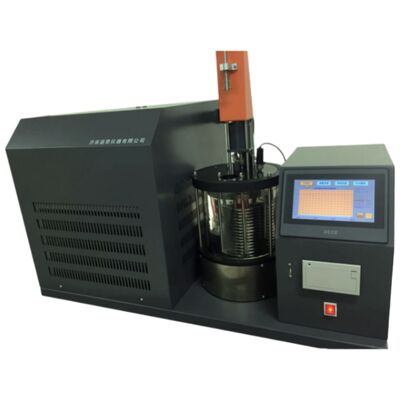

Single Group Test Fully Automatic Crystallization Point Tester +80℃ ～ -10℃ ASTM D1493
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shandong Shengtai Instrument Co.,Ltd |
| Certification | GB/T 3145 GB/T 3069.2 GB/T 3710 GB/T 7533 GB/T 618 GB/T1663 GB/T 13255.2 ASTM D852 ASTM D6875 ASTM D1493 |
| Model Number | SH406B |
| Minimum Order Quantity | 1 |
| Packaging Details | wooden crate |
| Delivery Time | 7 - 15 work days |
| Payment Terms | T/T |
| Supply Ability | 10000 sets / year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Work Cold Trough | Double Layer Vacuum Glass Bath | Cold Bank Temp Control | +80℃ ～ -10℃ (Customizable From -10 ℃ ～ 170 ℃) |
|---|---|---|---|
| Control Accuracy | ±0.1℃ | Refrigeration Mode | Fully Enclosed And Efficient Refrigeration Compressor |
| Number Of Experimental Groups | 1 Group (2 Groups Can Be Customized) | Motor Speed | 1200r/min |
| Ambient Temp | ≤30℃ | Relative Humidity | ≤85% |
| Highlight | single group crystallization point tester,automatic lube oil testing equipment,ASTM D1493 crystallization tester |
||
Product Description

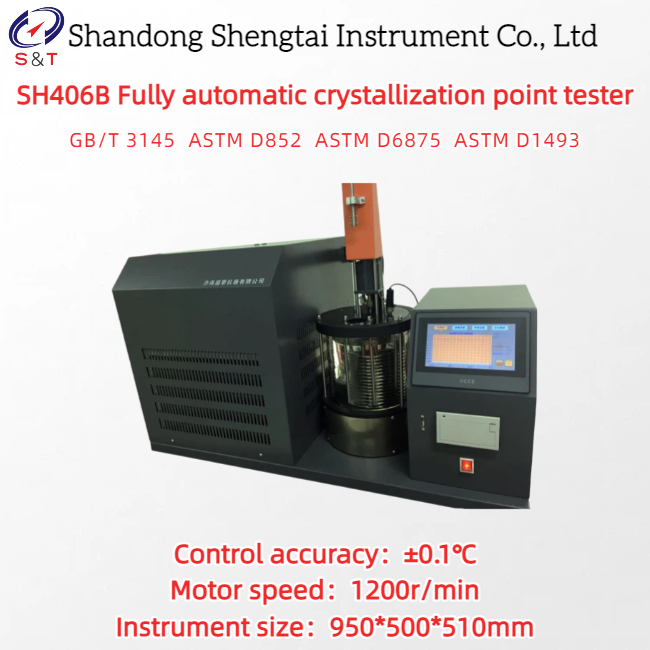

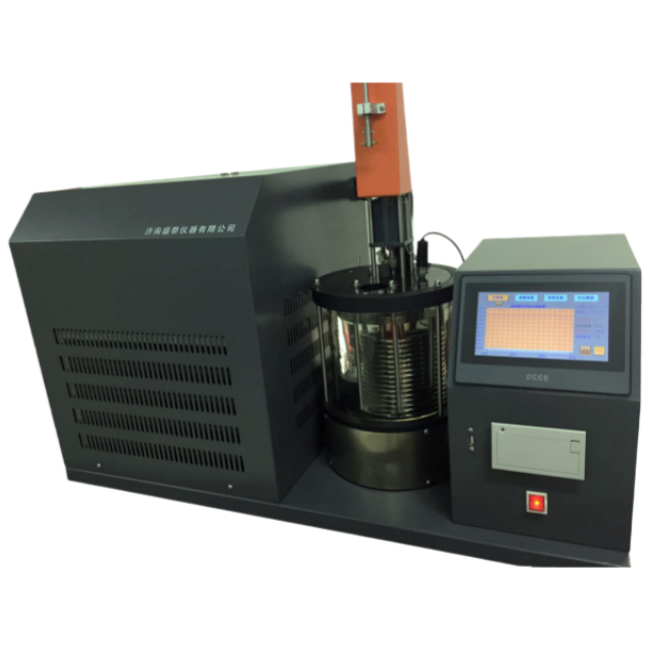

SH406B Fully automatic crystallization point tester
The SH406B fully automatic crystallization point tester is applicable to GB/T 3145-2023 benzene crystallization point determination, GB/T 3069.2-2005 naphthalene crystallization point determination, GB/T 3710-2009 industrial phenol and phenol crystallization point determination, GB/T 7533-1993 organic chemical product crystallization point determination, and GB/T 618-2006 chemical reagent crystallization point determination. GB/T1663-2001 Determination of Crystallization Point of Plasticizers GB/T13255.2 Determination of Crystallization Point of Caprolactam for Industrial Use. Complies with American standard ASTM D852/D6875/D1493
Standers:
GB/T 3145 GB/T 3069.2 GB/T 3710 GB/T 7533 GB/T 618 GB/T1663 GB/T 13255.2 ASTM D852 ASTM D6875 ASTM D1493
Compliance with standards
● Upgraded to 7-inch TFT color LCD display;
● After the upgrade can store 199 sets historical data, convenient query;At the same time can be equipped with U disk output function, output format is CSV or Excel.
● Standard micro printer automatic measurement automatic printing
● After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.
● Data extension: laser printer interface, can be linked to HP1108 laser printer (optional).
● Data protection: with date password setting function.
● Remote upgrade with TCP network transmission function, can be later software remote upgrade
● Data management: can be connected to LIMS system
● Data memory: microcomputer instrument memory can be expanded to 16G.
● Standard printing: Standard micro printer automatic measurement automatic thermal printing
Technical parameters
| Power supply | AC220V±10% 50HZ |
| Work cold trough | Double layer vacuum glass bath |
| Cold bank temp control |
+80℃ ～ -10℃ (Customizable from -10 ℃ ～ 170 ℃) |
| Control accuracy | ±0.1℃ |
| Refrigeration mode | fully enclosed and efficient refrigeration compressor |
| Number of experimental groups | 1 group (2 groups can be customized) |
| Detection mode | imported PT100 temperature sensor |
| Bath liquid stirring | automatic stirring motor |
| Power | 6W |
| Motor speed | 1200r/min |
| Ambient temp | ≤30℃ |
| Relative humidity | ≤85% |
| Whole power | About 1500W |
| Instrument size | 950*500*510mm |
| Instrument weight | 48.83kg |
| Package size | 1060×620×610mm |
| Package weight | 62kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Crystallization point test tube | 1 | Set | |
| 3 | Temperature sensor | 2 | Piece | |
| 4 | Power cord | 1 | Root | |
| 5 | Instruction | 1 | Copy | |
| 6 | Packing list | 1 | Copy | |
| 7 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
