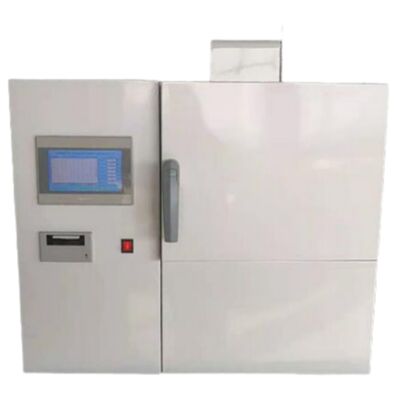

Automatic Low-Temp Torque Tester For Lubricating Grease Normal Temp ～ -70 ℃ ASTM D1478

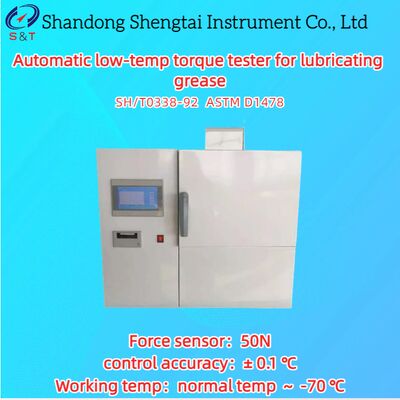

SH0338B Automatic low-temp torque tester for lubricating grease

The automatic low-temperature torque tester for lubricating grease is suitable for measuring the low-temperature torque of ball bearing lubricating grease below -20 ℃, and meets the requirements of SH/T0338-92 standard. This instrument adopts dual compressor refrigeration, which is fast and effective. The structure of this instrument is simple and the appearance is beautiful, making it very suitable for laboratory use. Capable of automatically measuring the starting torque and operating torque of lubricating grease, recording the results, and printing.

Performance and Features

1 . Adopting dual compressors for cooling, no need for circulating cooling water, using a condenser for heat dissipation, and connecting the power supply for cooling.

2. The entire operation process of the instrument adopts PLC and 7-inch high-definition full-color touch screen for automatic control, parameter display and recording, equipped with embedded printer for automatic printing of results.

3. The instrument adopts Japanese Fuji temperature control module for temperature control, and the sensor adopts Pt100, which has the characteristics of sensitive temperature sensing, high resolution, strong anti-interference, high temperature control accuracy, and long service life.

4. The low-temperature chamber of this instrument has good sealing, which can ensure a constant internal temperature and maintain the required temperature for the test.

5. High precision tension sensors are used for measurement, with a large range. The tension value has the functions of power on reset, startup reset, and manual reset to ensure the accuracy of the results. The detection result is directly displayed as mn. m, automatically converted, saved, and printed. Equipped with standard weights, the sensor can be calibrated regularly. The sensor has good repeatability, durability, and is not easily damaged. Like imported instruments, it is built into the machine to ensure accuracy of results.

Main technical parameters

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Random accessories

Also included: -80 ~ 60℃ thermometer 1 and 2 (204 bearings).

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
