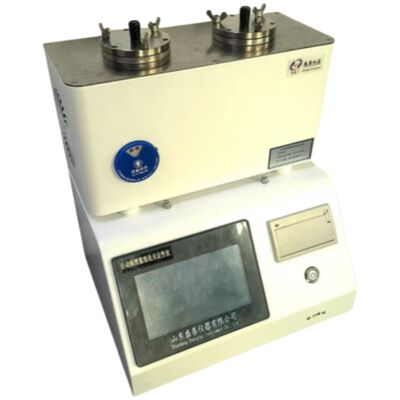

2 Holes Fully Automatic Lubricating Grease Oxidation Stability PT100 Sensor ASTM D942
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temp Control Point | 99℃ | Temp Control Accuracy | ±0.1℃ |
|---|---|---|---|
| Operation Mode | LCD Touch Screen | Sensor | PT100 Sensor |
| Bath Hole | 2 Holes | Relative Humidity | ≤ 85% |
| Ambient Temp | 5 ～ 40℃ | Package Size | 430*360*485 Mm |
| Highlight | fully automatic grease oxidation tester,PT100 sensor lube oil tester,ASTM D942 grease stability equipment |
||
Product Description

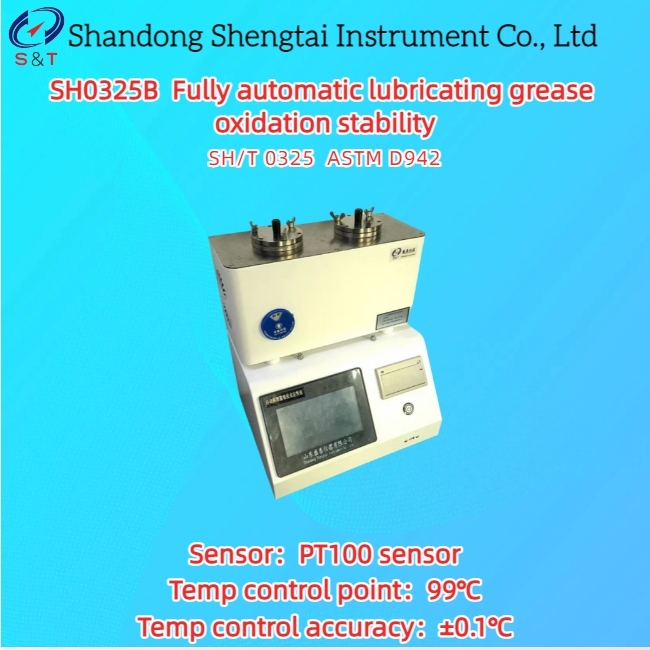

SH0325B Fully automatic lubricating grease oxidation stability
SH0325B Automatic grease oxidation stability tester in line with SH/T0325 "grease oxidation stability determination method" test method requirements, in line with ASTM D942, suitable for the determination of grease in static storage in the oxygen sealed system of oxidation stability.
It can automatically detect the pressure, record the data, calculate the oxidation time and finish the test automatically.While displaying the test curves and results on the screen, they are also automatically saved so that the operator can print them as needed
Technical parameters
|
Power supply |
AC220V±10% 50HZ |
|
Heating power |
1500W |
|
Temp control point |
99℃ |
|
Temp control accuracy |
±0.1℃ |
|
Operation mode |
LCD touch screen |
|
Sensor |
PT100 sensor |
|
Bath hole |
2 holes |
|
Ambient temp |
5 ～ 40℃ |
|
Relative humidity |
≤ 85% |
|
Instrument size |
375*300*425 mm |
|
Package size |
430*360*485 mm |
|
Package weight |
20kg carton |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
|
S/N |
Name |
Quantity |
Unit |
Remarks |
|
1 |
Host |
1 |
Set |
|
|
2 |
Oxygen bomb |
2 |
Piece |
|
|
3 |
Laboratory dish |
10 |
Piece |
|
|
4 |
Power cord |
1 |
Piece |
|
|
5 |
Instructions |
1 |
Copy |
|
|
6 |
Packing list |
1 |
Copy |
|
|
7 |
Certificate warranty card |
1 |
Copy |
|
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
