Air Release Value Tester RT ～ 99℃ 7-Inch Touch Screen Timing 0 - 99min ASTM D3427

  • Air Release Value Tester RT ～ 99℃ 7-Inch Touch Screen Timing 0 - 99min ASTM D3427
  • Air Release Value Tester RT ～ 99℃ 7-Inch Touch Screen Timing 0 - 99min ASTM D3427
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification SHT 0308-1992 ASTM D3427-2007
Model Number SH0308B
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Timing 0 ～ 99min Timing Accuracy ±1s
Temp Control Range RT ～ 99℃ Pressure Regulation Range 0 ～ 0.2MPa
Range Of Air Release Value Density 0.83 ～ 0.84, 0.84 ～ 0.85, 0.85 ～ 0.86，0.86 ～ 0.87 G/m³ Power Supply AC220V±10% 50Hz±5%
Ambient Temp 5℃ ～ 40℃ Relative Humidity ≤85
Highlight

Air Release Value Tester 7-inch touch screen

,

Lube oil testing equipment with timing

,

ASTM D3427 air release tester
Leave a Message
Product Description

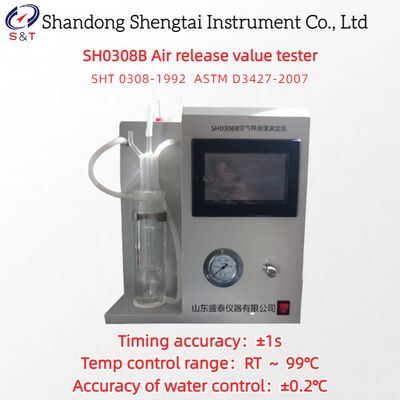

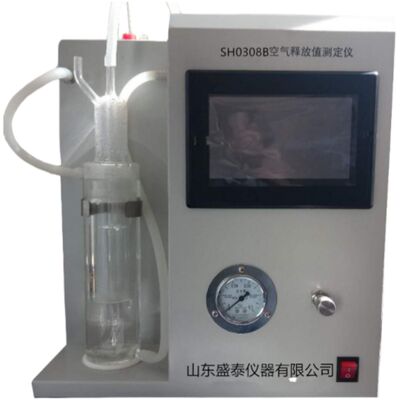

SH0308B Air release value tester

SH0308B air release value tester adopts advanced 32-bit MCU, 7-inch large screen LCD display, has the advantages of stable and reliable, simple operation and easy maintenance.

Applicable to SHT 0308-1992 "Lubricating oil air release value determination method".Built-in pressure controller, automatic control of air pressure, without manual adjustment.In accordance with ASTM D3427-2007 lubrication oil air release value determination.

Main functions and features

● 7-inch high-resolution color touch screen, resolution 1024×600, human-computer interaction is simple and easy to use.

● Adopt 32-bit microprocessor as the main control core, a new generation of intelligent operating system.

● Adopt high precision PT100 temperature sensor, PID automatic temperature control, real-time display of temperature curve.

● Built-in pressure controller to realize automatic control of water temperature, air temperature and air pressure.

● High degree of automation, automatic on and off, automatic start time, without manual intervention.

Technical atindicors

Timing 0 ～ 99min
Timing accuracy ±1s
Temp control range RT ～ 99℃
Accuracy of water control ±0.2℃
Accuracy of air control ±2℃
Pressure regulation range 0 ～ 0.2MPa
Range of air release value density 0.83 ～ 0.84, 0.84 ～ 0.85, 0.85 ～ 0.86,0.86 ～ 0.87 g/m³
Power supply AC220V±10% 50Hz±5%
Power 800W
Ambient temp 5℃ ～ 40℃
Relative humidity ≤85
Instrument size 420*350*580mm
Instrument weight 35kg
Package size 500*450*720mm
Package size 52kg

Air Release Value Tester RT ～ 99℃ 7-Inch Touch Screen Timing 0 - 99min ASTM D3427 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Jacket test tube 1 Set
3 Densitometer 4 Piece
4 Air compresor 1 Set
5 Snakeskin tube 2 Meter
6 Silicone tube 1.5 Meter
7 Power cord 1 Piece
8 Fuse tube 1 Piece 10A
9 Instruction manual 1 Copy
10 Packing list 1 Copy
11 Certificate 1 Copy


Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
