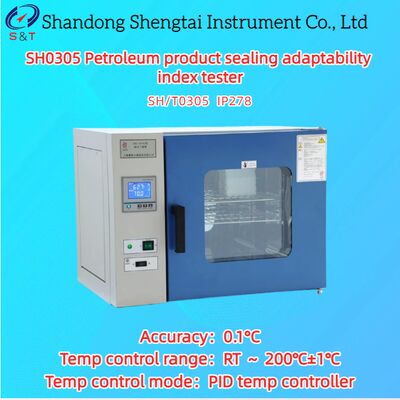

Hydraulic Oil Sealing Adaptability Index Tester RT ～ 200℃±1℃ PID Temp Controller SH/T 0305

SH0305 Petroleum product sealing adaptability index tester

SH0305 petroleum product sealing adaptability index tester is suitable for the determination of all kinds of petroleum products, but not suitable for the determination of petroleum products containing water.

The inner diameter of the rubber ring is measured with a conical gauge, and then the rubber ring is soaked in the sample at a certain temperature for 24 hours. Then the rubber ring is taken out and cooled. The change of the inner diameter of the rubber is measured with a conical gauge.

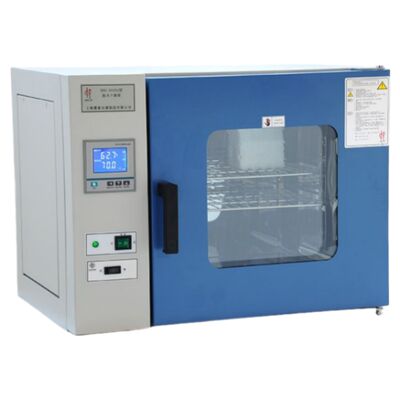

Petroleum Products Seal Compatibility Index Tester

Main features

● Stainless steel lining with fan, 350 * 350 * 350 mm inside.High efficiency thermal insulation;

● Microcomputer LCD PID temperature control, accuracy 0.1°C, temperature sensor PT100 RTD;

● Operating range: RT ~ 200°C ± 1°C (test temperature is 100°C);

● Over temperature safety protection;Stainless steel heater;

● 300 * 200 mm glazing on the double doors for easy viewing;

● Standard alloy steel gauge;

● Instrumentation includes a convection oven with a standard design for temperatures up to 200°C

Technical parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

CUSTOMERS NEED TO PREPARE TEST SUPPLIES:

● Measuring cylinder: 50ML

● Bamboo tweezers: length 150-2000mm

● Scissors

● Filter Paper

● Petroleum: analytical pure, 60 ~ 90°C

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
