16 Channles Automatic Oil Pollution Particle Counter Shale Oil 0.8um ～ 600um ISO 4406

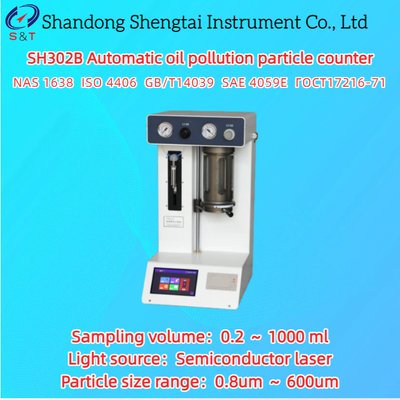

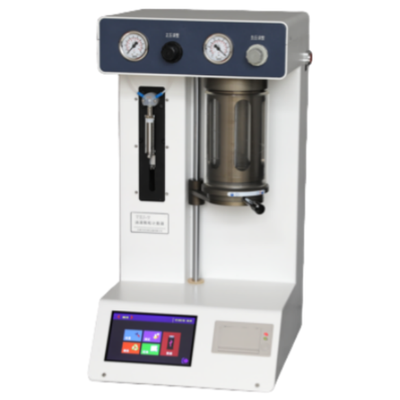

SH302B Automatic oil pollution particle counter

The SH302B fully automatic oil pollution particle counter is used to detect the size and quantity of solid particles in liquids, and can be widely used in fields such as aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, and automobile manufacturing. It performs solid particle pollution detection on hydraulic oil, lubricating oil, shale oil, transformer oil (insulation oil), turbine oil (turbine oil), gear oil, engine oil, aviation kerosene, water-based hydraulic oil, and detects insoluble particles in organic liquids and polymer solutions.

The fully automatic oil pollution particle counter adopts the "light resistance method" to measure particles, and adopts the classic methods of NAS1638 and ISO4406 in the oil industry. It can also built-in multiple standards according to user requirements. Precision syringe sampling system, achieving constant sampling speed and precise control of sampling volume. Positive/negative pressure sampling chamber device, achieving sample degassing and high viscosity sample detection. Large screen color LCD touch screen, graphical menu display, touch operation, simple and convenient.

Performance characteristics

● The counting principle of light resistance (shading) method formulated by International Hydraulic Standards Committee is adopted.

● High precision laser sensor, wide test range, stable performance, low noise, high resolution

● Adopt the high pressure injection pump sampling mode, can set the sampling volume, the sampling speed is stable, the sampling accuracy is high.

● Sampling system combined with positive and negative pressure can realize sample degassing, which is suitable for inspection and testing of different viscosity.

● Built-in pressure sensor, you can set the pressure value, and automatically judge the cabin air pressure, ensure safety.

● Built-in air purification system to ensure that the test is not polluted.

● Built-in multiple calibration curves, compatible with all common domestic and foreign standards for calibration.

● Built-in GJB - 420 - b, NAS1638, ISO 4406 (GB/T14039), SAE4059E and Г OCT17216-71, and other common standards, support custom standard tests, and can according to customer requirements set the required standards.

● Built - in data analysis system, one test can give all standard test data and pollution level.

● The particle size can be set arbitrarily, with nearly ten thousand particle sizes built in, which is convenient for particle size analysis.

● Various sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries.

● Full function automatic color touch screen operation, support Chinese and English dual interface, easy to operate.

● Single channel and multi-channel calibration can be carried out to achieve automatic calibration function.

● With RS232 interface, it can be connected to computer or laboratory platform for data processing.

● With mass data storage, printing function, can store 1000 groups of data and support U disk data storage

Technical indicators

Note: The appearance pictures, dimensions, volume and weight are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
