Solidifying Point Cold Filter Point Tester -70 ～ 30 ℃ PT100 Sensor Single Hole ASTMD 6371

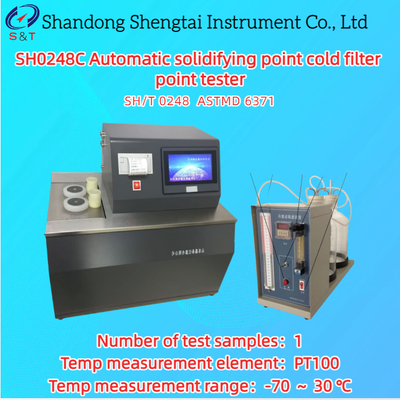

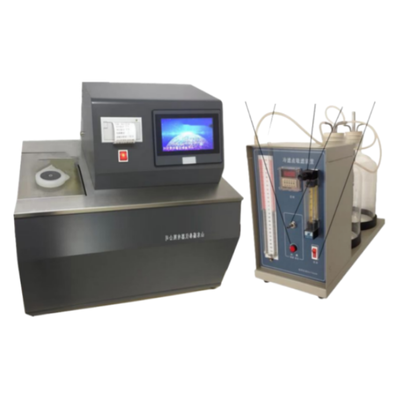

SH0248C Automatic solidifying point cold filter point tester

The SH0248C fully automatic solidifying point and cold filtration point tester is based on the national standard GB/T510 "Petroleum Product Solidification Point Determination Method" and SH/T 0248. It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technology. It can automatically complete the testing of petroleum product freezing point and cold filtration point. This instrument adopts photoelectric detection technology and glass tube automatic tilting method, The imported compressor refrigeration system ensures that the required cooling depth is achieved.

Instrument features

Adopting embedded system design and imported PT100 temperature sensor, automatic detection throughout the entire test process; Color touch screen; Can store test results; Can view historical data; The results are printed on the instrument, mechanically stirred automatically, and the experimental results can be exported through a USB flash drive. After being stored in the computer, multiple experiments can be compared.

Instrument features:

● Upgrade to a 7-inch TFT color LCD display;

● Fully enclosed high-efficiency refrigeration compressor refrigeration

● 1 experimental cold trap (can be used for 2 holes)

● Imported OMRON photoelectric switch detection

● Standard micro printer, automatic measurement, automatic thermal printing

● The experimental results can store 199 sets of historical data for easy retrieval;

● Can be equipped with USB output function, output to PC for long-term storage, output format is CSV or Excel

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● After the experiment is completed, if there are no personnel to operate, set the automatic shutdown time of the refrigeration machine within 0-50min to avoid frequent compressor starts and extend the service life of the instrument.

Technical parameters

Note: The appearance pictures, dimensions, volume and weight of instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
