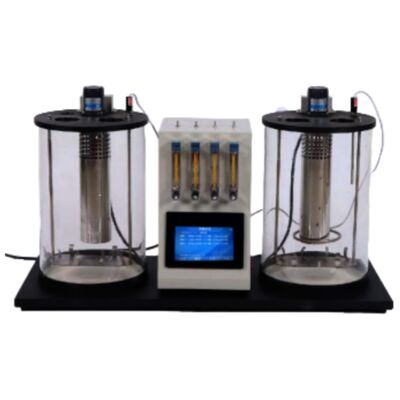

2 Bathtub Liquid Crystal Foam Characteristics Tester 5 ～ 100℃ PT100 Sensor ASTM D892

  • 2 Bathtub Liquid Crystal Foam Characteristics Tester 5 ～ 100℃ PT100 Sensor ASTM D892
  • 2 Bathtub Liquid Crystal Foam Characteristics Tester 5 ～ 100℃ PT100 Sensor ASTM D892
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification GB/T 12579 ASTM D892
Model Number SH126B
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temp Control Range 5 ～ 100℃, With Refrigeration Temp Control Accuracy ±0.1℃
Temp Measurement Element PT100 Sensor Test Quantity 2 Sample, Double Bathtubs
Test Cylinder 1000mL (special Cylinder) Display LCD Color Screen Digital Display
Power Supply AC220V±10% 50HZ Relative Humidity ≤ 85%
Highlight

bathtub foam tester PT100 sensor

,

liquid crystal foam tester ASTM D892

,

lube oil testing equipment 5-100℃
Leave a Message
Product Description

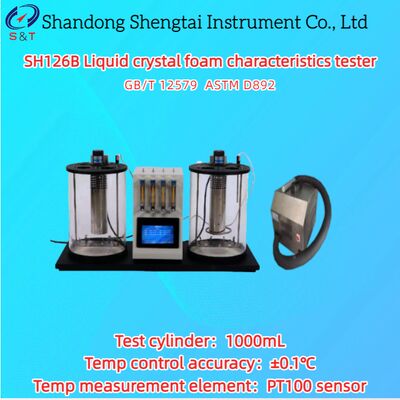

SH126B Liquid crystal foam characteristics tester

SH126B liquid crystal foam tester is designed according to GB/T 12579-90 "Lubricating Foam Performance Determination Method" and ASTM D892. It is used to determine the foam characteristics of engine lubricating oil,fuel oi, gear oil, hydraulic oil and other oil products to evaluate the foam tendency of lubricating oil and the degree of foam stability.

Standard: GB/T 12579 ASTM D892

Instrument characteristics

The instrument is controlled by dynamic temperature control, automatic timing, air source and gas flow centralized control, 32-bit ARM processor control, high-definition color touch screen display, PID temperature control and setting technology has the advantages of accurate test temperature and high constant temperature accuracy.

Technical parameters

Display LCD color screen digital display
Temp control range 5 ～ 100℃, with refrigeration
Temp control accuracy ±0.1℃
Temp measurement element PT100 sensor
Test quantity 2 sample, double bathtubs
Test cylinder 1000mL (special cylinder)
Flow control 16-160ml/min float flowmeter
Air source Comes with air source, 3L/min
Diffusion head air permeability 3000 ～ 6000mL/min, at 2.4kPa (250mmH2O) pressure
Timing accuracy ±0.05s
Heating power 2500W(93.5℃ bathtub) 800W(24℃ bathtub)
Power supply AC220V±10% 50HZ
Ambient temp -10 ～ +40℃
Relative humidity ≤ 85%
Instrument size 680*380*550mm
Instrument weight 35kg
Whole power ＜3000W
Gas diffusion head diameter 25.4mm

2 Bathtub Liquid Crystal Foam Characteristics Tester 5 ～ 100℃ PT100 Sensor ASTM D892 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity U nit Remarks
1 Host 1 Unit
2 Portable refrigerating plant 1 Set
3 Measuring cylinder 4 Piece
4 Foam head 4 piece
5 Gauge plug 4 Piece
6 Rubber hose 2 Meter
7 Thermometer 1 Piece
8 Power cord 1 Root
9 Fuse tube 1 Piece 10A
10 Instruction manual 1 Copy
11 Packing list 1 Copy
12 Certificate 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
