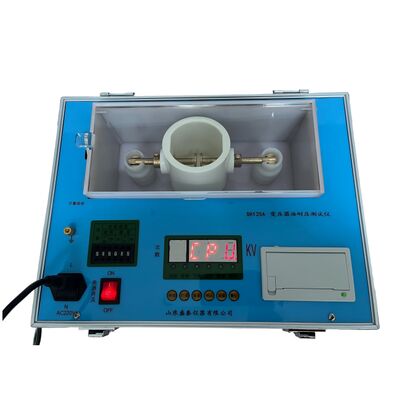

Single Cup Insulating Oil Withstand Voltage Tester Test 0 - 80KV Error ± 5% GB/T 507

  • Single Cup Insulating Oil Withstand Voltage Tester Test 0 - 80KV Error ± 5% GB/T 507
  • Single Cup Insulating Oil Withstand Voltage Tester Test 0 - 80KV Error ± 5% GB/T 507
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification GB/T 507-2002 ASTM D877
Model Number SH125A
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Equipment Capacity 0.5KVA Booster Capacity 1.5 KVA
Limiting Current 5mA Output Test Voltage 0-80KV
Scheduled Setting Times 1-9 Quiet Time 0-10min39s
Ambient Temp 10℃ ～ 35℃ Relative Humidity ≤75%
Highlight

Single cup insulating oil tester

,

Oil withstand voltage tester 0-80KV

,

GB/T 507 oil testing equipment
Leave a Message
Product Description

SH125A Oil withstand voltage tester voltage breakdown tester

Product overview

The SH125A oil withstand voltage tester is one of the routine tests for the electrical performance of oil immersed high-voltage electrical equipment. According to the revised "Power Factor Oil Quality Test Method" by the Ministry of Electric Power, which complies with the GB/T 507-2002 Insulation Oil Breakdown Voltage Measurement Method, an insulation oil dielectric strength tester has been developed. The product is a dry aluminum alloy shell with light weight, easy to carry, suitable for power factor and on-site use by users, Compared with similar products, this product has the advantages of simple operation, high efficiency, and accurate measurement, making it an ideal testing instrument for testers.

Product model SH125A
Product Name Oil pressure tester
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing items Dielectric strength of insulating oil
Compliant with standards GB/T 507-2002 ASTM D877
Simple technical features or parameters Automatically print and output results

Single Cup Insulating Oil Withstand Voltage Tester Test 0 - 80KV Error ± 5% GB/T 507 0

Technique parameters

Test range AC 0-80KV
Equipment capacity 0.5KVA
Booster capacity 1.5 KVA
Limiting current 5mA
Input voltage 200V 50HZ
Output test voltage 0-80KV
Voltage meter indication error ±5%
Boost speed 2KV/s ± 20%
Voltage regulation speed 2KV/S ± 10%
Scheduled setting Times 1-9
Quiet time 0-10min39s
Mixing time 0-1min39s
Arc ignition time ＜20ms
Measurement accuracy 1%
Ambient temp 10℃ ～ 35℃
Relative humidity ≤75%
Oil cup clearance 2.5mm (oil cup feeler gauge diameter)
Pressure speed 2.0kV/s,2.5kV/s,3.0kV/s,3.5kV/s
Package size 480*450*380mm
Package weight 25kg
Power supply AC220V ±10% 50HZ ±5%

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Unit
2 Special oil cup 1 Set
3 Power cord 1 Copy
4 Instruction manual 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy

Single Cup Insulating Oil Withstand Voltage Tester Test 0 - 80KV Error ± 5% GB/T 507 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
