Automatic Volume Resistivity Tester Constant Temp 0～59min 15～100℃ ASTM D924

  • Automatic Volume Resistivity Tester Constant Temp 0～59min 15～100℃ ASTM D924
  • Automatic Volume Resistivity Tester Constant Temp 0～59min 15～100℃ ASTM D924
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification DL/T421-2009 GB/T 5654 ASTM D924
Model Number SH124
Minimum Order Quantity 1
Packaging Details wooden crate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Test Range 2.0 * 10⁵ ～ 1.0 * 10^13 Ω M Constant Temp Time 0 ～ 59min
Charging Time 0 ～ 99s Discharge Time 0 ～ 9min
Temp Control Range 15 ～ 100℃ Temp Control Accuracy ± 0.5℃
Power Source AC220V± 10% 50Hz± 5% Power ≤500W
Highlight

Automatic resistivity tester for lube oil

,

Volume resistivity tester with constant temp

,

Lube oil tester ASTM D924 compliant
Leave a Message
Product Description

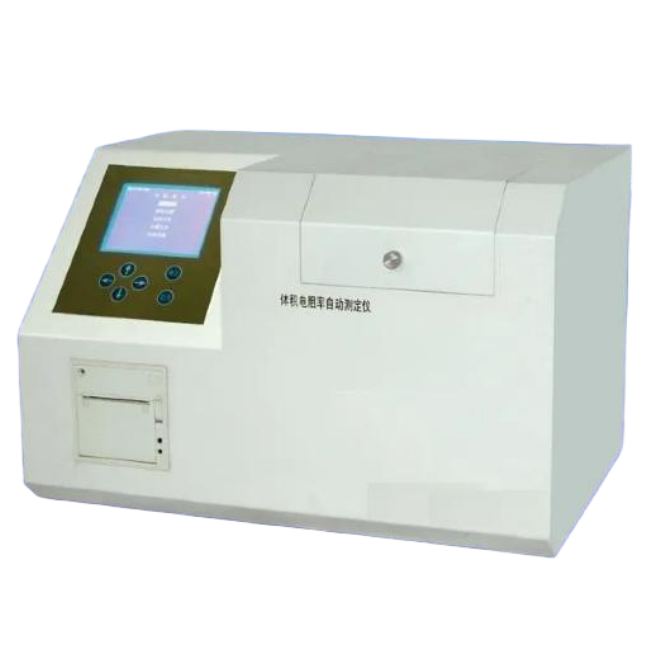

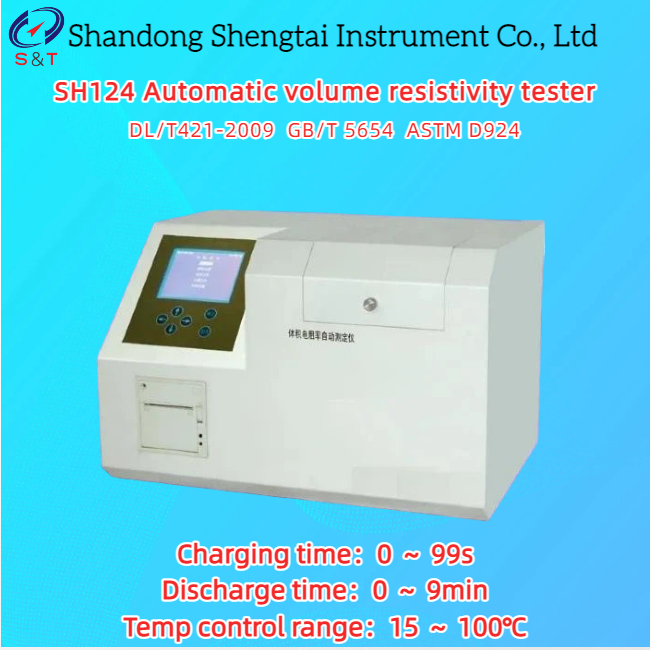

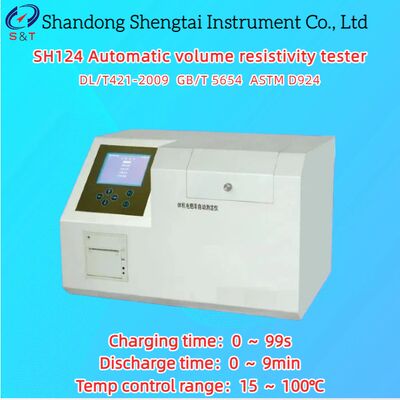

SH124 Automatic volume resistivity tester

SH124 automatic volume resistivity tester is designed and manufactured according to the requirements of the People's Republic of China power industry standard DL/T421-2009 and the national standard GB/T 5654. It is used for measuring the volume resistivity of liquid media such as insulating oil and fuel oil.

SH124 automatic volume resistivity measuring instrument adopts MCS-51 series MCU as the system control core, color LCD display, Chinese man-machine dialogue, guide operation, the measurement process is fully automated (automatic cup change, automatic shift), and rolling storage of 200 test data;And combined with modern new technology developed from.

The whole equipment of advanced design, reasonable structure, simple operation, safe and reliable, is the contemporary technology level of same sort products at home and abroad the highest performance index, the most perfect resistivity tester, particularly useful in the application of oil monitoring, power sector test results accord with national standard DL421-91 the insulating oil volume resistivity measurement.

Product model SH124
Product Name Automatic volume resistivity tester
Manufacturer Shandong Shengtai Instrument Co., Ltd
Testing items Measure the volume resistivity of liquid media such as insulating oil and fire-resistant oil
Standards DL/T421-2009 GB/T 5654 ASTM D924

Automatic Volume Resistivity Tester Constant Temp 0～59min 15～100℃ ASTM D924 0

Technical parameters

Test range 2.0 * 10⁵ ～ 1.0 * 1013 Ω m
Test voltage DC500V High error of 0.5%
Constant temp time 0 ～ 59min
Charging time 0 ～ 99s
Discharge time 0 ～ 9min
Temp control range 15 ～ 100℃
Temp control accuracy ± 0.5℃
Test accuracy
Repeatability Volume resistivity Relative error
> 1.0 * 1010 Ω m 25%
≤1.0 * 1010 Ω m 15%
Reproducibility Volume resistivity Relative error
> 1.0 * 1010 Ω m 35%
≤1.0 * 1010 Ω m 25%
Electrode cup parameters
Electrode type three terminal electrode, internal and external electrode double temp control
Electrode material special steel
Insulation material PTFE
Electrode spacing 2.0mm
Empty cup capacitance 30.0pF
Empty glass insulation resistance > 3.0 * 1012 Ω
Power source AC220V± 10% 50Hz± 5%
Power ≤500W
Environment temp 10 ～ 35℃
Relative humidity ≤ 85%

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they maybe slight changes without prior notice.



Packing list

S/N Name Quantity Unit Remarks
1 Host 1 Set
2 Electrode cup 1 Set
3 power cord 1 Piece
4 Instructions 1 Copy
5 Packing list 1 Copy
6 Certificate warranty card 1 Copy

Automatic Volume Resistivity Tester Constant Temp 0～59min 15～100℃ ASTM D924 1

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
