Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200 ℃ ASTM D2893

  • Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200 ℃ ASTM D2893
  • Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200 ℃ ASTM D2893
Place of Origin CHINA
Brand Name Shandong Shengtai Instrument Co.,Ltd
Certification SH/T 0123 ASTM D2893
Model Number SH0123B
Minimum Order Quantity 1
Packaging Details wooden ceate
Delivery Time 7 - 15 work days
Payment Terms T/T
Supply Ability 10000 sets / year
Product Details
Temp Control Range RT ～ 200℃ Temp Control Method Digital Display Temp Controller For Automatic Temp Control
Flow Meter 30-300ml/min Temp Control Precision ±0.2℃ Of The Set Temperature
Temp Measuring Element Thermal Resistor Sample Capacity 8 Channels, Capable Of Testing 8 Samples Simultaneously
Instrument Size 480*360*800mm Instrument Weight 44.8kg
Highlight

lubricating oil oxidation stability tester

,

high temperature lube oil tester

,

ASTM D2893 oil testing equipment
Leave a Message
Product Description

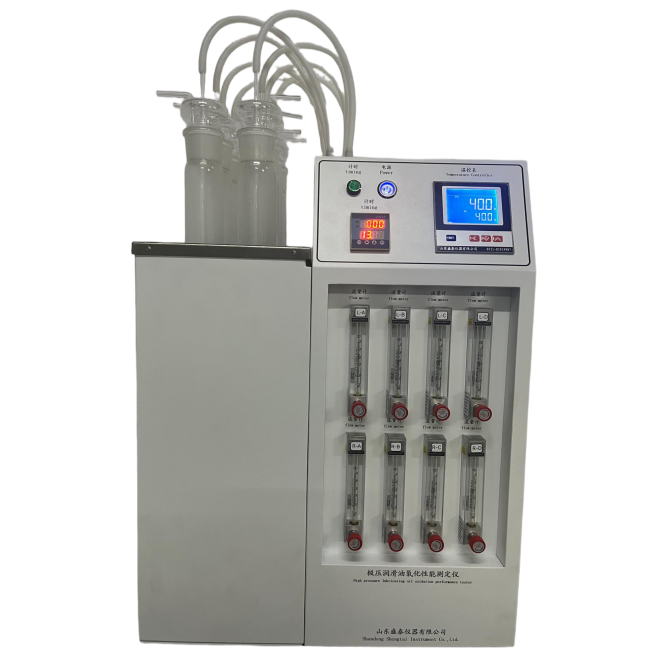

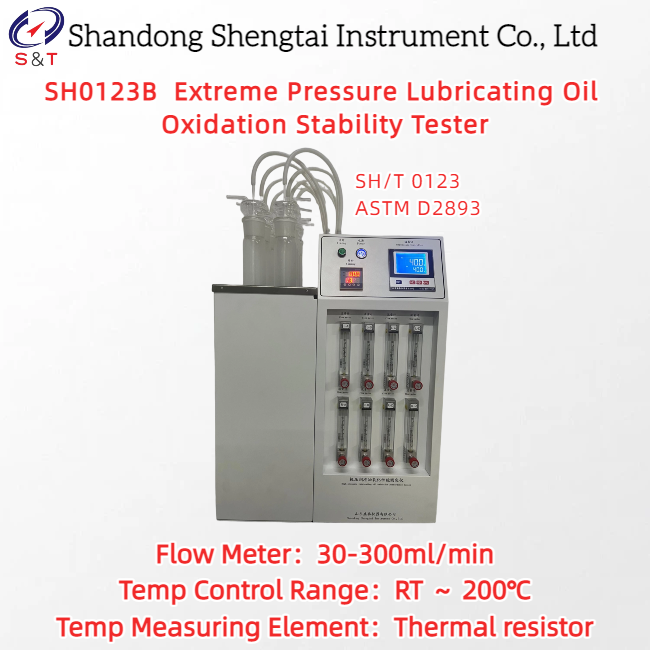

SH0123B Extreme Pressure Lubricating Oil Oxidation Stability Tester

SH0123B Extreme Pressure Lubricating Oil Oxidation Stability Tester is designed and manufactured in accordance with the requirements specified in the industry standard of the People's Republic of China, SH/T 0123 "Test Method for Oxidation Stability of Extreme Pressure Lubricating Oils". It is suitable for the determination of extreme pressure lubricating oils (such as gear oils). The operating method is as follows: the sample is exposed to constant-pressure dry air at a certain temperature for 312 hours. The oxidation stability of the oil is indicated by measuring the increase in kinematic viscosity at 100℃ and the change in sediment value of the sample.

I. Main Technical Features

● The instrument adopts a desktop structure, and the test tubes are designed and manufactured in accordance with the SH/T 0123 standard.

● The heating device uses a metal bath heating method with no peculiar smell.

● Equipped with 8 flow meters, whose specifications meet the requirements of the SH/T 0123 standard.

● Equipped with a digital timer for setting and recording the test time.

● Built-in air pump and purification device.

II. Main Technical Parameters and Indicators

Standard SH/T 0123 ASTM D2893
Temp control method Digital display temp controller for automatic temp control
Temp Control Range RT ～ 200℃
Flow Meter 30-300ml/min, one flow meter connected to each oxidation tube
Temp Control Precision ±0.2℃ of the set temperature
Temp Measuring Element Thermal resistor
Sample Capacity 8 channels, capable of testing 8 samples simultaneously
Instrument size 480*360*800mm
Instrument weight 44.8kg
Package size 540*470*825mm
Package weight 69kg Weight of 2 wooden boxes: main unit+accessories

Extreme Pressure Lubricating Oil Oxidation Stability Tester RT ～ 200 ℃ ASTM D2893 0

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.



Package list

Number Name Quantity Unit
1 Host 1 Unit
2 Oxidation tube 8 Set
3 Hose( inner diameter φ6 ) 1 Piece
4 Glass air guide tube 8 Piece
5 Instruction 1 Copy
6 Certificate of qualification 1 Copy



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
