4 Holes Oil Emulsification Tester RT ～ 150℃ Timing 0 ～ 99min PT100 Sensor ASTM D1401

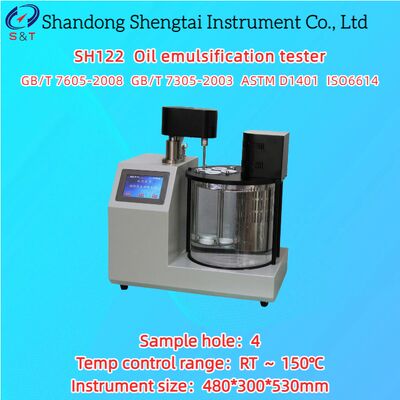

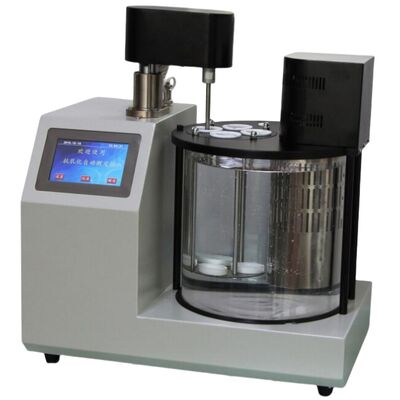

SH122 Oil emulsification tester

The SH122 petroleum demulsification tester is used to measure the ability of petroleum synthetic liquids to separate from water. In accordance with GBT 7605-2008, the method for determining the degree of demulsification of steam turbine oil during operation and GB-T 7305-2003, the method for determining the water separation of petroleum and synthetic liquids. The constant temperature bath adopts a small cylinder body, which is easy to operate, accurate in measurement, and aesthetically designed. It is a new type of instrument introduced in China.

Demulsification of petroleum: under the specified test conditions, the same volume of test oil and distilled water is stirred to form emulsion, and the time required for its separation (that is, when the volume of emulsion at the oil water separation interface is equal to or less than 3mL) is measured. Only read the separation time (min) and do not need to be calculated.

The instrument features

● Adopt 5 inch high-definition color touch screen, interface display clear, easy to operate.

● The instrument can separate 4 samples simultaneously.

● Adopt PID temperature control technology, high temperature control precision.

● Automatic lifting of mixing device; Mechanical transmission is noiseless, stable and reliable.

● Adopt imported PT100 temperature sensor, high accuracy of temperature measurement.

● Parameters such as temperature control value and fine-tuning temperature can be set. After setting, the instrument can be saved.

● Can save 500 historical records, easy to consult.

Technical indicators

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
