2 Sets Petroleum Pour Point Tester Metal Bath Small LCD Display Accuracy 0.5℃ ASTM D97
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | Small LCD Display | Heating | Metal Bath |
|---|---|---|---|
| Temp Control Range | -70℃ ～ RT | Temp Control Accuracy | ±0.5℃ |
| Package Size | 890*530*480mm | Environment Temp | ≤ 30℃ |
| Relative Humidity | ≤ 85% | Power Supply | AC220V±10% 50HZ |
| Highlight | petroleum pour point tester ASTM D97,metal bath lube oil tester,LCD display pour point tester |
||
Product Description

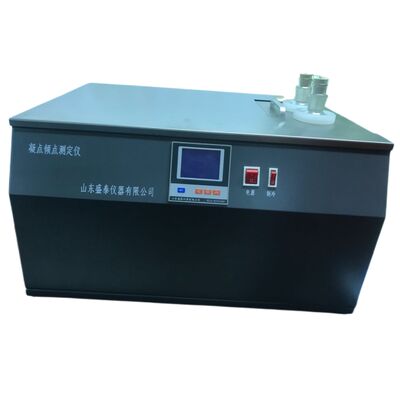

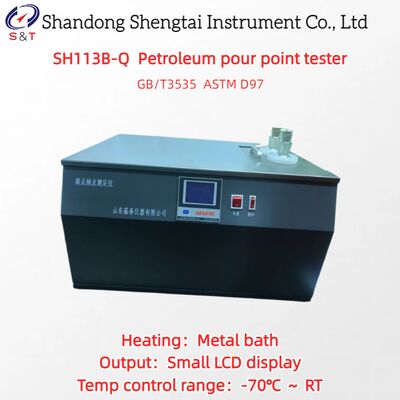

SH113B-Q Petroleum pour point tester
SH113B-Q Petroleum Pour Point Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T3535 "Petroleum Pour Point Determination Method", and is suitable for measuring the pour point of petroleum products according to the methods specified in the above standards.
Pour point refers to the minimum temperature at which a cooled sample of oil can flow under specified test conditions; Expressed in degrees Celsius.
| product model | SH113B-Q |
| product Name | Manual pour point meter/tester (metal bath) |
| manufacturer | Shandong Shengtai Instrument Co., Ltd |
| Project test | Determination of the pour point of petroleum products and chemical products |
| Standard | GB/T3535 ASTM D97 |
| Parameter | Temp control range: -70℃ ～ RT, cooled by the compressor, which can do 2 groups of tests at the same time |
Main technical characteristics:
● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.
● The output mode is small LCD display, with good temperature control stability
● The main machine is heated in a metal bath, without the need to replace the medium alcohol, and the temperature drops quickly
● Imported cascade compressor
Main technical parameters
| Output | Small LCD display |
| Heating | Metal bath |
| Temp control range | -70℃ ～ RT |
| Cold bath temp control range | -70℃ ～ RT |
| Sample measurement range | -55℃ ～ RT |
| Range of pour point | -55℃ ～ RT |
| Temp control accuracy | ±0.5℃ |
| Refrigeration system | New type of refrigeration compressor (dual compressor) |
| Environment temp | ≤ 30℃ |
| Relative humidity | ≤ 85% |
| Power | No more than 1500W |
| Package size | 890*530*480mm |
| Package weight | 75kg |
| Power supply | AC220V±10% 50HZ |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Details of petroleum product pour point tester
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | Set | |
| 2 | Pour point glass tube | 2 | Piece | |
| 3 | Pour point thermometer | 2 | Piece | |
| 4 | Power cord | 1 | Piece | |
| 5 | Fuse tube | 1 | Piece | |
| 6 | Instruction manual | 1 | Copy | |
| 7 | Packing list | 1 | Copy | |
| 8 | Certificate warranty card | 1 | Copy |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
