Automatic Carbon Residue Tester Measure 0.10% - 30.0%M/M Constant Temp 15min ASTM D4530

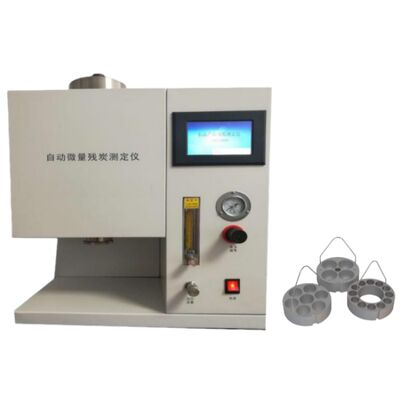

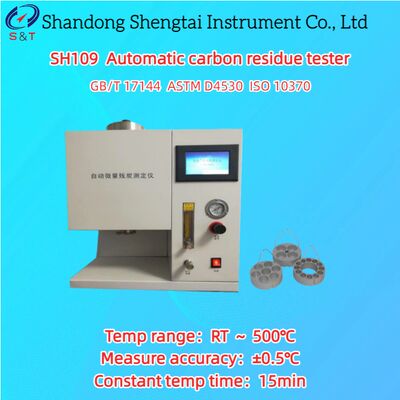

SH109 Automatic carbon residue tester

The SH109 fully automatic residual carbon analyzer is designed and manufactured in accordance with the requirements of GB/T 17144-2021 "Determination of residual carbon in petroleum products (micro method)", "ASTM D4530" and "ISO 10370:1993" standards. It has the characteristics of beautiful appearance and convenient operation. The test results are consistent with the GB/T268 (Con's method) test results and are also suitable for detecting petroleum products composed of distillate oil with a residual carbon value below 0.10 (m/m).

Petroleum residue: The residue formed by the gas decomposition products discharged from an oil sample after heating, evaporation, and cracking. Represented by quality fraction

Principle: Place the weighed sample into a sample tube and heat it up to 500 ℃ according to the prescribed temperature program in an inert gas (ammonia) atmosphere. The volatile substances generated during the reaction process are carried away by ammonia, and the remaining carbonaceous residue is reported as a percentage of the original sample for trace residual carbon value

Performance characteristics

● Adopt 5 color LCD touch screen automatic calculation, optional printing function, main board with communication interface.

● The whole heating process program control, automatic control of heating rate, automatic control of the set temperature, stable temperature control.

● Display instrument is in a state of "purge", "temperature rise" and "constant temperature"

● Adopt embedded operating system, temperature rise, flow automatic control, real-time display experiment process

● Can edit the input sample tube, sample quality, automatic calculation of carbon residue value.

● Can store hundreds of groups of historical data, convenient query.Historical data can be queried by date

Main technical parameters

Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packaging and Delivery

1. Packaging of goods: standard wooden or cardboard boxes.

2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
