1 - 3 Oil Samples Oleic Acid Value Tester 0.001 ～ 1.000mgKOH/G Transformer Oil ISO 5167
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sample Test | 1-3 | Test Range | 0.001 ～ 1.000mgKOH/g |
|---|---|---|---|
| Accuracy | ±0.005mgKOH/g | Resolution | 0.001mgKOH/g |
| Relative Humidity | ＜80％ | Ambient Temp | 10℃ ～ 30℃ |
| Highlight | oleic acid value tester for transformer oil,oil sample tester with ISO 5167 compliance,lube oil testing equipment with 0.001mgKOH/G precision |
||
Product Description

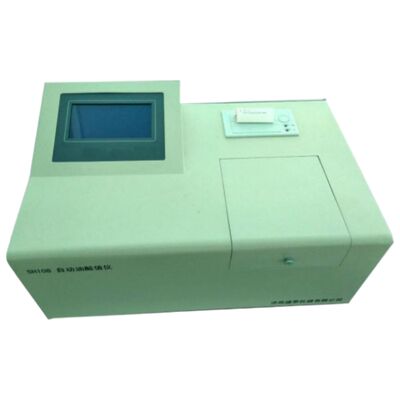

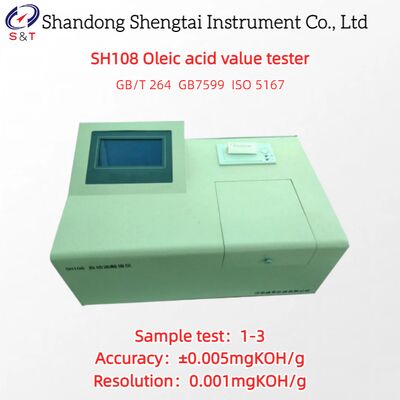

SH108 Oleic acid value tester
The upgraded version of the SH108 automatic oleic acid value meter meets the requirements specified in the Chinese standards GB/T 264 "Determination of Acid Value of Petroleum Products" and GB7599. The instrument adopts a blue LCD large screen display, Chinese menu, and unmarked buttons.
Microcomputer automatic measurement, automatic printing, the test process to achieve computer automation, intuitive and simple operation.Using magnetic stirring, no noise, safe and reliable, compact size.It can meet the needs of oil refineries, power plants and scientific research units, and is one of the essential instruments for oil analysis and quality inspection.
| Testing items | It can meet the needs of petroleum refineries, power plants, and scientific research institutions, and is one of the necessary instruments for oil analysis and quality inspection |
| Compliant with standards | The requirements specified in GB/T 264 "Determination of Acid Value of Petroleum Products" and GB7599, |
| Simple technical features or parameters | Adopting the principle of titration neutralization method, automatic completion of liquid injection, titration, stirring, and determination of neutralization titration endpoint under microcomputer control |
Performance characteristics
● Using the principle of titration and neutralization method, under the control of the microcomputer automatically complete liquid injection, titration, mixing, determination of neutralization and titration end point, LCD screen display the measurement results, and automatically print the measurement results.The measurement process takes seven minutes.
● Special reagent bottles are used to hold the extraction liquid and neutralizing liquid, and the reagent is isolated from the air during use to avoid the influence of volatilization and carbon dioxide in the atmosphere.At the same time also play a role in protecting the operator.
● Automatic acid value tester can choose a test of 1~3oil samples.
Technical indicators
| Power supply | AC220V±10％ 50Hz±1Hz |
| Sample test | 1-3 |
| Test range | 0.001 ～ 1.000mgKOH/g |
| Accuracy | ±0.005mgKOH/g |
| Resolution | 0.001mgKOH/g |
| Repetitiveness | 0.003mgKOH/g |
| Power | 300W |
| Relative humidity | ＜80％ |
| Ambient temp | 10℃ ～ 30℃ |
| Instrument size | 420×250×280 mm |
| Instrument weight | 10 Kg |
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | SH108 Automatic acid value tester | Unit | 1 | |
| 2 | Sample oil cup | Piece | 3 | |
| 3 | Stir bar | Piece | 3 | |
| 4 | Extract | Piece | 1 | |
| 5 | Neutralization liquid | Piece | 1 | |
| 6 | Power cord (250V, 6A) | Root | 1 | |
| 7 | Insurance tube (Φ 5 x 20, 10 a), | Piece | 1 | |
| 8 | Printing paper | Roll | 1 | |
| 9 | Needle (6#) | Piece | 1 | |
| 10 | Needle (9#) | Piece | 1 | |
| 11 | Silicone tube (inner hole Φ 2 * 1) | M | 1 | According to the need by the user self-cutting |
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
