Automatic Flash Andignition Point Tester RT ～ 400℃ Electronic Ihnition COC Method ASTM D92

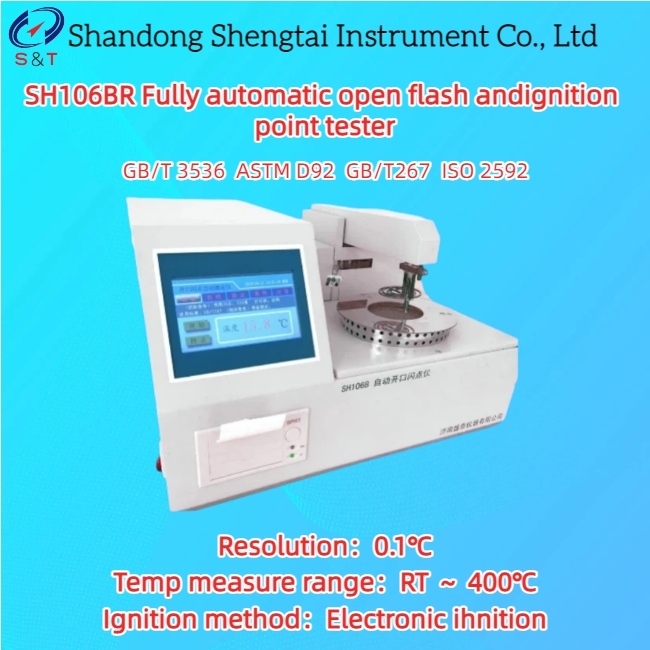

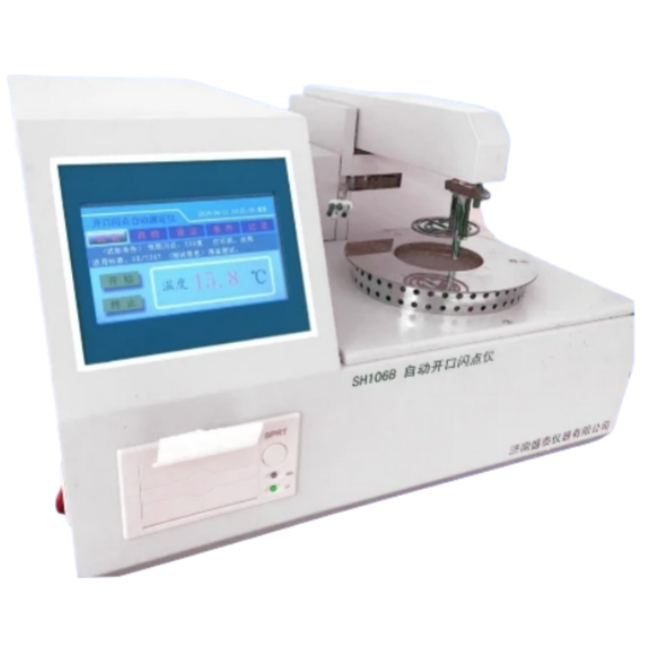

SH106BR Fully automatic open flash andignition point tester

The SH106BR Automatic Open Flash Point and Andignition Point Tester is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T 3536, ASTM D92 "Petroleum Products - Determination of Flash Point and Flash Point (Cleveland Open Cup Method)" and GB/T267-1988, ASTM D92 Petroleum Products - Determination of Flash Point and Flash Point (Open Cup Method).

Standard: GB/T 3536 ASTM D92 GB/T267 ISO 2592

Open flash point testers are mostly used for lubricating oils and heavy petroleum products, because when measured with this product, the vapor formed by heating petroleum products continuously diffuses into the surrounding air, resulting in a higher measured flash point. For most lubricating oils and heavy oils, especially when used in unsealed parts or at low temperatures, even a small amount of light admixtures will evaporate during use, without posing a risk of ignition or explosion. Therefore, these products are measured using an open flash point tester.

Main technical features

● Adopts a large color LCD screen display, a full Chinese human-computer dialogue interface, and an unmarked keyboard. It has a prompt menu and guided input function for parameters such as predictable temperature, sample label, atmospheric pressure, and test date.

● Simulate and track the function curve between temperature rise and test time, with Chinese misoperation software prompt modification function, and parameter prompt functions such as test date and time.

● Automatically correct the effect of atmospheric pressure on the test and calculate the correction value.

● Differential detection, automatic correction of system deviation.

● Scanning, detecting, and printing data are automatically completed, and the test arm automatically rises and falls.

● Electronic ignition, forced air cooling

● Automatic ignition without the need for a gas source improves the safety of the test

Main technical parameters

Note: The appearance pictures, dimensions, volume and weiht of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
