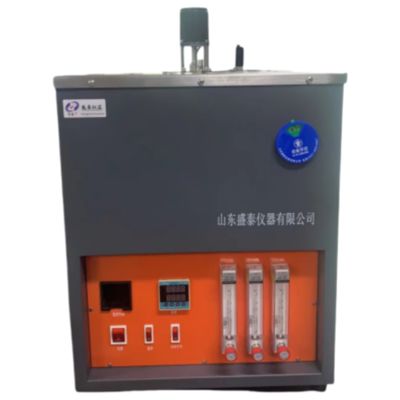

3 Holes Engine Coolant Corrosion Tester RT - 100℃ ± 0.1℃ Timing 0 - 9999h ASTM D1384

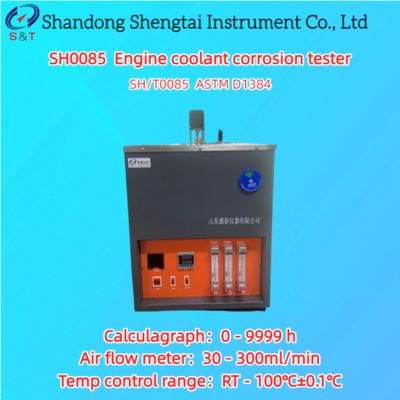

SH0085 Engine coolant corrosion tester

SH0085 antifreeze corrosion instrument is according to the law of the People's Republic of China petroleum and chemical industry standard SH/T0085 the engine cooling fluid corrosion measurement the requirements of the design and manufacture, suitable for according to the SH/T0085 standard measurement method, the determination of high boiling point and low boiling point engine coolant and concentrate on the extent of the typical specimens of metal corrosion, SH0085 corrosion tester upgraded instruments bring silent air compressor, no need to manually equipped with air.

Standard: SH/T0085 ASTM D1384

Main technical specifications

● Gas diffusion tube: Sand core glass diffusion head, heat-resistant glass tube diameter.

● Built-in silent air compressor, no need to manually equip air source.

Technical parameters

Sample size and material:

SH/T0085 engine coolant corrosion determination method (glassware method) set of test plates ASTM D1384

● 50 * 25 * 2mm (20# steel, brass sheet, copper sheet)

● 50 * 25 * 3.5mm (cast aluminum sheet, solder sheet, cast iron sheet)

● Single center hole: φ7.0mm

Supporting products:

Brass washers, Insulation washers, Steel washers, Insulation bushing, Brass bracket

Note: The appearance pictures, dimension, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
