Aniline Point Tester RT-200℃ Heave Oli Light Oil 12V Lighting ASTM D611
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Heating Method | Stainless Steel Electric Heating Tube(built-in) | Heating Power | 2KW |
|---|---|---|---|
| Temp Control Range | RT～200℃ | Temp Control Accuracy | ≤0.5℃ |
| Lighting Power | 12V | Power Supply | AC220V±10% 50HZ |
| Highlight | Aniline Point Tester ASTM D611,Heavy Oil Aniline Tester 12V,Light Oil Testing Equipment RT-200℃ |
||
Product Description

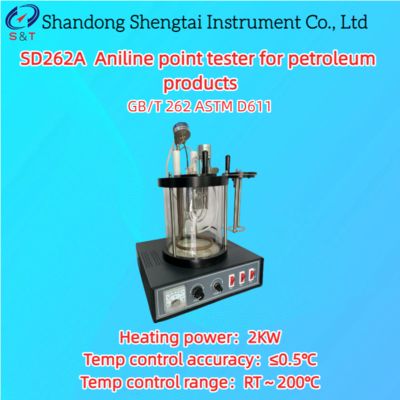

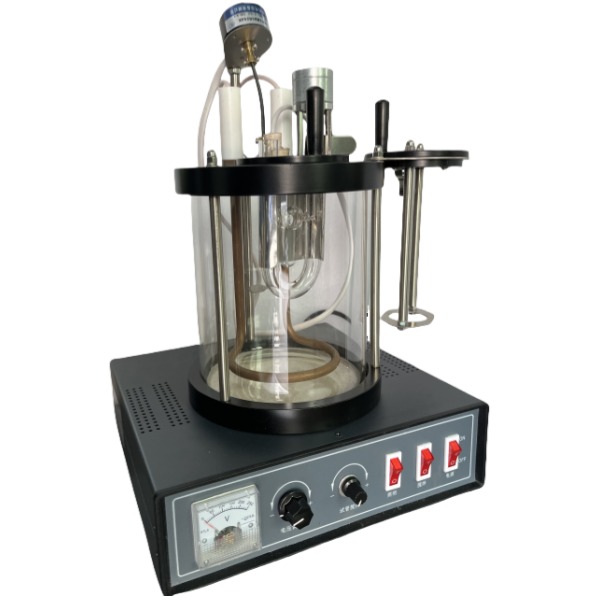

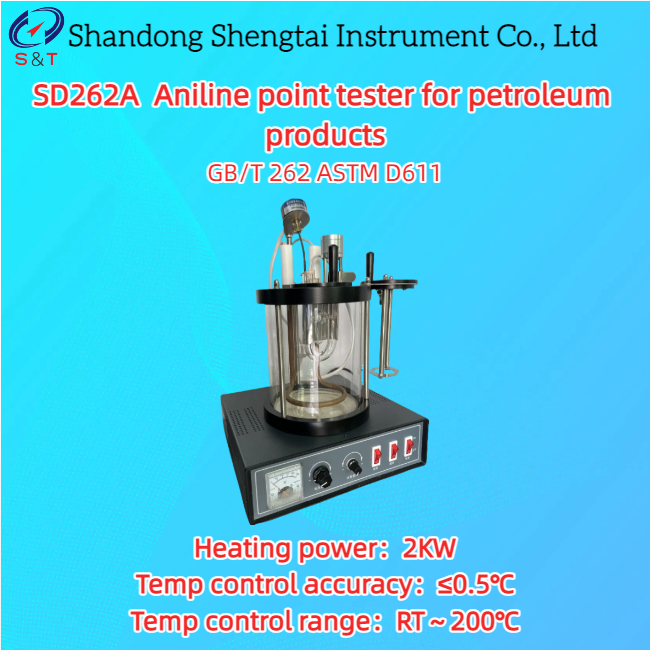

SD262A Aniline point tester for petroleum products
SD262A Aniline point tester for petroleum products is designed and manufactured according to the requirements stipulated in the national standard GB/T262 Aniline point tester for petroleum products. It is suitable for the determination of aniline point for light colored petroleum products and dark colored petroleum products.
The lowest temperature required for petroleum products to dissolve into a single liquid phase with an equal volume of aniline is called the aniline point.
Standard: GB/T 262 ASTM D611
Main technical features: aniline point meter oil analysis
● The design of the instrument fully conforms to the requirements of GB/ T262 standard for the aniline point test of dark petroleum products and light petroleum products.
● The instrument can measure the aniline point of heavy oil (dark petroleum products) and light oil (light petroleum products).
● Temperature control system adopts digital display PID temperature control instrument, high temperature control precision, stable and reliable performance, easy to operate.
Technical parameters
| Heating method | Stainless steel electric heating tube(built-in) |
| Power supply | AC220V±10% 50HZ |
| Motor power | 6W |
| Heating power | 2KW |
| Temp control range | RT～200℃ |
| Temp control accuracy | ≤0.5℃ |
| Lighting power | 12V |
| Instrument size | 280*260*440 mm |
| Instrument weight | 5.45 kg |
| Package size | 370*360*500 mm |
| Package weight | 13kg wooden crate |
Note:The appearance photos, dimension, volume and weight of the instrument are for reference only.If there are any updates to the instrument, they may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list
| S/N | Name | Unit | Quantity | note |
| 1 | Host | Unit | 1 | |
| 2 |
25～105℃ Thermometer scale division 0.2℃ |
Piece | 1 | |
| 3 |
90～170℃ Thermometer scale division 0.2℃ |
Piece | 1 | |
| 4 | U type tube (For heavy oil) | Piece | 1 | |
| 5 | Metal shield (For heavy oil) | Piece | 1 | |
| 6 | Illumination bulb assembly | Piece | 1 | For heavy oil |
| 7 | Seat 2 for test device (For heavy oil) | Piece | 1 | With stirring motor assembly |
| 8 | Glass test tube | Piece | 2 | Φ25(For light oil) |
| 9 | Glass casing tube | Piece | 1 | Φ40(For light oil) |
| 10 | Cork 1# (For light oil) | Piece | 1 | Hole of Φ25 |
| 11 | Test tube plug (for light oil testing) | Piece | 1 | Central hole Φ 9 and mixing rod hole |
| 12 | Stirring rod (For light oil) | Piece | 1 | |
| 13 | Seat 1 for testing device | Piece | 1 | (For light oil) |
