Manual Closed Cup Flash Point Tester Heating 1-12 ℃/Min Diesel Thermal Oil ASTMD 93
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sample Heating Rate | 1-12 ℃/min | Heating Power | 0～600W |
|---|---|---|---|
| Standard Oil Cup Inner Diameter | 50.7-50.8mm | Standard Oil Cup Depth | 55.7-56.0 Mm |
| Oil Testing Capacity | Approximately 70mm | Power Supply | AC 220V ± 10% 50Hz |
| Highlight | Manual closed cup flash point tester,Diesel thermal oil flash point tester,ASTM D93 lube oil tester |
||
Product Description

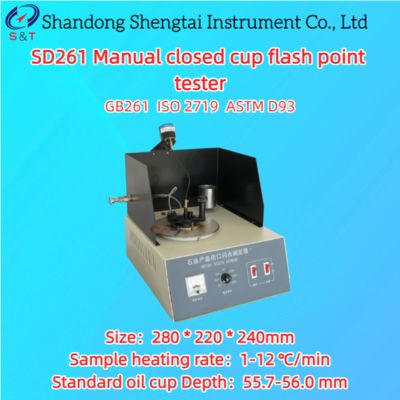

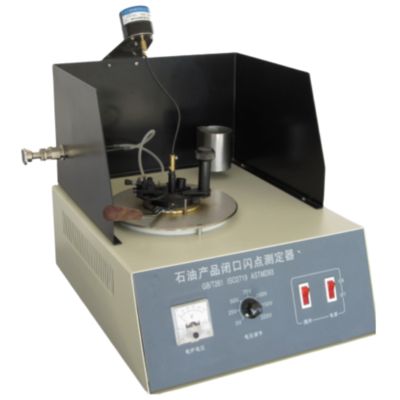

SD261 Manual closed cup flash point tester
SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.
The result obtained by using a specified closed flash point tester is called the closed flash point, expressed in ℃. Commonly used to determine kerosene, diesel, transformer oil, etc
Closed flash point is used to detect the flash point values of products such as thermal oil, diesel, transformer oil, and cold pressed oil
| Product model | SD261 |
| Test sample | Petroleum, electric power, chemicals, products |
| Compliance with standards |
GB261 ISO 2719 ASTM D93 Binsky Martin closed cup method |
| Technical features | Air source ignition, manual timing and visual observation |
Main technical features
| Power supply | AC 220V ± 10% 50Hz |
| Heating power | 0～600W |
| Sample heating rate | 1-12 ℃/min |
| Standard oil cup Inner diameter | 50.7-50.8mm |
| Standard oil cup Depth | 55.7-56.0 mm |
| Oil testing capacity, depth of marking | 33.9-34.3mm |
| Oil testing capacity | approximately 70mm |
| Ignition device |
① Ignition source: gas (or other civil combustible gas, the same below). ② Pilot aperture: 0.8mm. |
| Thermometer | rod Mercury-in-glass thermometer,GB/T 261-2008 |
| Size | 280 * 220 * 240mm (L*W*H) |
| Weight | 9kg |
● The heating power is continuous and stepless adjustable.
● Comes with standard windshields
Note:The appearance photos, dimensions,volume and weight of the instrument are for reference only.If there are any updates to the instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packing list:
| S/N | Name | Quantity | Unit | Remarks |
| 1. | Host | 1 | Unit | |
| 2. | Oil cup | 1 | Piece | |
| 3. | Thermometer | 1 | Piece | |
| 4. | Instructions | 1 | Copy | |
| 5. | Certificate warranty card | 1 | Copy |
Customer provided: air source and air source required pressure reducing valve
