UV Fluorescence Sulfur Analyzer 0.1-10000mg/L ASTM D5453

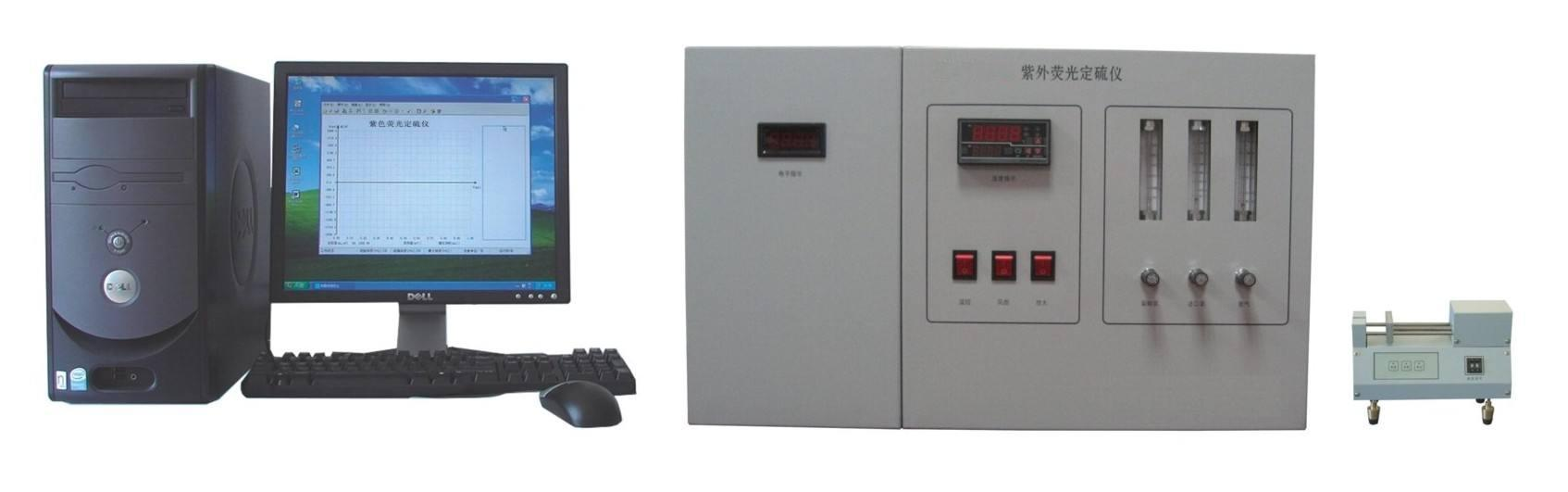

SH0689 UV Fluorescence Sulfur Analyzer

The UV fluorescence sulfur analyzer adopts the principle of UV fluorescence method and is suitable for determining the total sulfur content in crude oil, distillate oil, liquefied petroleum gas, plastics, petrochemical products, food, etc. After being introduced into the high-temperature cracking furnace, the sample undergoes cracking oxidation reaction. At a high temperature of around 1000 ℃, the sample is completely vaporized and undergoes oxidative cracking, with sulfides quantitatively converted to sulfur dioxide. The reaction gas is carried by the carrier gas, and after passing through a membrane dryer to remove its moisture, it enters the reaction chamber. Sulfur dioxide is exposed to specific wavelengths of ultraviolet radiation, which absorbs this radiation and causes some electrons to shift to high-energy orbitals. Once electrons return to their original orbits, excess energy is released in the form of light and detected by a photomultiplier tube at a specific wavelength. The emitted fluorescence is completely specific to sulfur and proportional to the sulfur content in the original sample. After amplification by a microcurrent amplifier and computer data processing, it can be converted into an electrical signal proportional to the intensity of light. By measuring its size, the sulfur content of the corresponding sample can be calculated.

SH0689 UV fluorescence sulfur analyzer complies with ASTM D5453, SH/T 0689-2000 and other standards

GB/T11060.8 Natural gas - Determination of sulfur-containing compounds - Part 8: Determination of total sulfur content by UV fluorescence spectrophotometry

Main features

Computer controlled operation can achieve human-machine dialogue, and data and peak shapes can be automatically stored and printed.

The operating software can be connected to the LIMIS system to achieve automatic data transmission.

The instrument adopts a new type of quartz cracking tube, which can increase the injection volume and reduce measurement errors

The automatic on/off of the cooling fan eliminates the hassle of waiting for the sample to shut down, saving time and effort.

The darkroom system adopts new foreign technologies, and key components use imported detection elements to improve the detection accuracy of the instrument

The instrument adopts an imported membrane dryer to absorb moisture, saving the trouble of frequently replacing magnesium perchlorate and reducing the problem of air leakage.

The use of computer-controlled temperature has improved the temperature control accuracy of the instrument and is less prone to overheating.

Using air cooling instead of water cooling saves water resources.

It is possible to retrieve existing calibration curves and calibrate them with standard samples for sample analysis.

Technical Parameter

● Measurement range: 0.1-10000mg/L (ppm)

● Detection limit: 0.1mg/L (ppm) (sulfur element)

● Repetitive error:

1.0mg/L＜X≤10mg/L Cv≤±10%

10mg/L＜X Cv≤±5%

● Gas source requirements: high-purity oxygen: above 99.98%; High purity argon gas: above 99.98% (self provided)

● Temperature control range: Room temperature ～ 1200 ℃

● Temperature control accuracy: ± 1 ℃

● Working power supply: AC220V ± 10% 50HZ

● Environmental requirements: Temperature range of 15 ～ 40 ℃; Humidity ≤ 85%

● Dimensions: Host: 550 × 560 × 200mm Weight: 9kg

● Temperature control: 550 × 560 × 400mm Weight: 10kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Approximate conversion formula

1%=10000PPm

1ppm=1mg/L

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
