Fully Automatic Touchscreen Oil Calorimeter 300ml Oxygen Bomb 0.0001℃ Accuracy

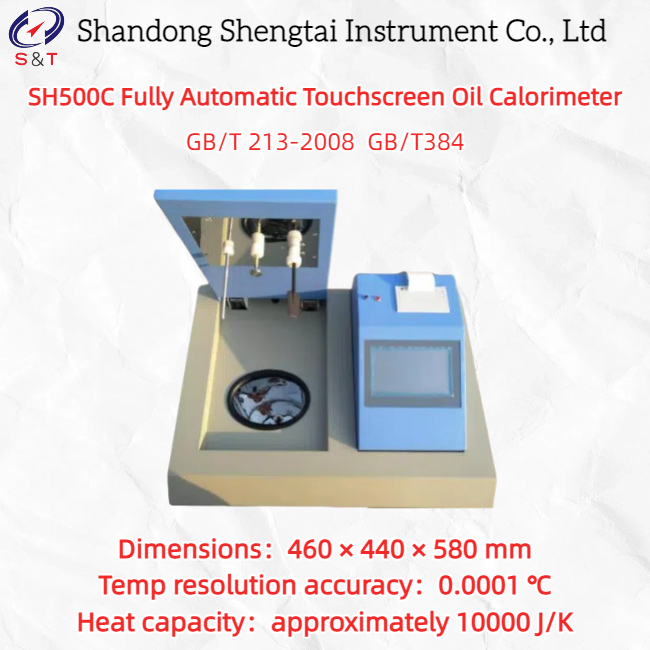

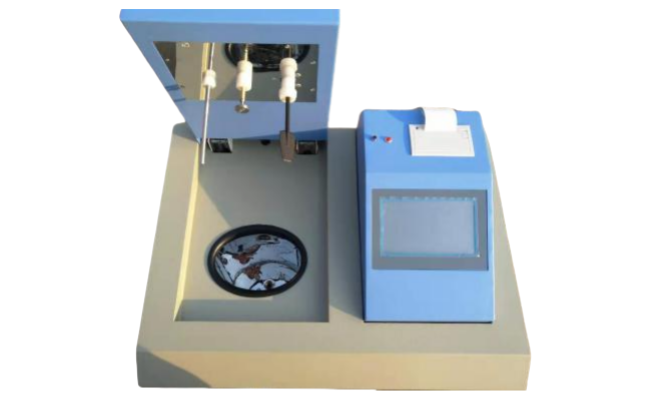

SH500C Fully Automatic Touchscreen Oil Calorimeter

The SH500C fully automatic touch screen oil calorific value meter complies with GB/T 213-2008 and GB/T384. It mainly consists of a constant temperature calorimeter system and an MCU embedded system, and is a highly automated heat measurement instrument that is automatically controlled by an intelligent MCU embedded system and capable of data processing; This instrument is mainly used for determining the calorific value of combustible substances such as coal, petroleum, chemical, food, and wood.

Its main characteristics

Adopting intelligent MCU to form an embedded system, the structure is simple, the performance is reliable, and the anti-interference ability is strong.

Adopting imported high-precision components to achieve high-precision temperature measurement. The complete and unique water injection, drainage, and calorimeter system, combined with the instrument, can automatically calibrate the system's thermal capacity. The carefully designed calculation program greatly improves the measurement accuracy.

Adopting a color touch screen display, fully displaying in Chinese, with a good user interface. Automatic control of the measurement process. Print the analysis base cartridge, analysis base high position, dry base high position, analysis base low position, and received low position base heat generation, with clear and concise results.

Adopting unique tracking and calibration technology, the instrument has relatively relaxed requirements for the environment, which not only improves the accuracy of the experiment, but also ensures the stability of long-term operation.

The inner cylinder adopts electric stirring with sheet-like blades; Adopting a fuse type cotton thread ignition method, it has high reliability and easy operation.

Draw a time temperature curve during the experimental process to assist in observing the experimental process.

The operation is fully automated, with only weighing, loading, and oxygenation required manually. The instrument automatically completes tasks such as quantitative water injection, automatic mixing, ignition, output printing results, and drainage.

Single pump displacement type water injection and drainage eliminates the problem of easy blockage of drainage pumps in the original dual pump model, and there is no need to adjust the water injection time from now on

Specification

● Heat capacity: approximately 10000 J/K

● Oxygen bomb:

Working pressure (oxygenation): 2.8-3.0Mpa, maximum 3.2Mpa

Pressure resistance test (water pressure): 20.0Mpa

Capacity: 300mL

Weight: 2.5Kg

● Repeatability: ± 30J/K

● Outer water tank capacity: approximately 45L

● Internal water cylinder capacity: approximately 2100mL

● Ignition voltage: AC24V

● Ignition method: Fused cotton thread ignition

● Temperature resolution accuracy: 0.0001 ℃

● Measurement accuracy: in accordance with the national standard GB/T 213-2008

● Power supply: AC220V ± 10% 50Hz

● Overall power: less than 300W in ignition state

● Operating environment: Temperature 0-40 ℃ Humidity: ≤ 80%

● Ignition voltage: AC24V

● Dimensions: 460 × 440 × 580 mm

● Host weight: approximately 30kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
