Fully Automatic Heavy Oil Calorimeter 30L Capacity 15 Min Test

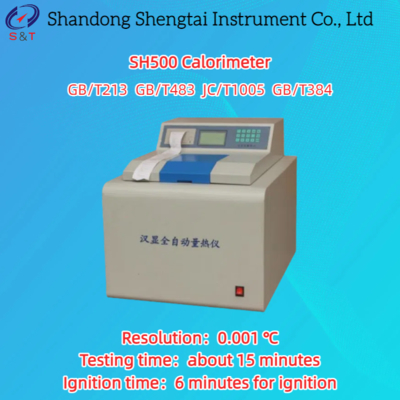

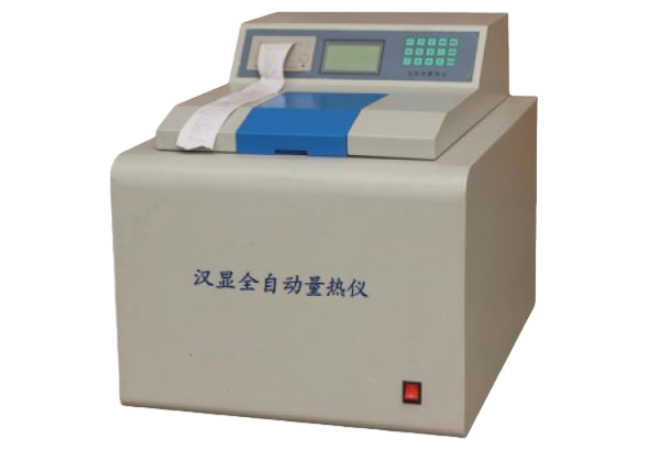

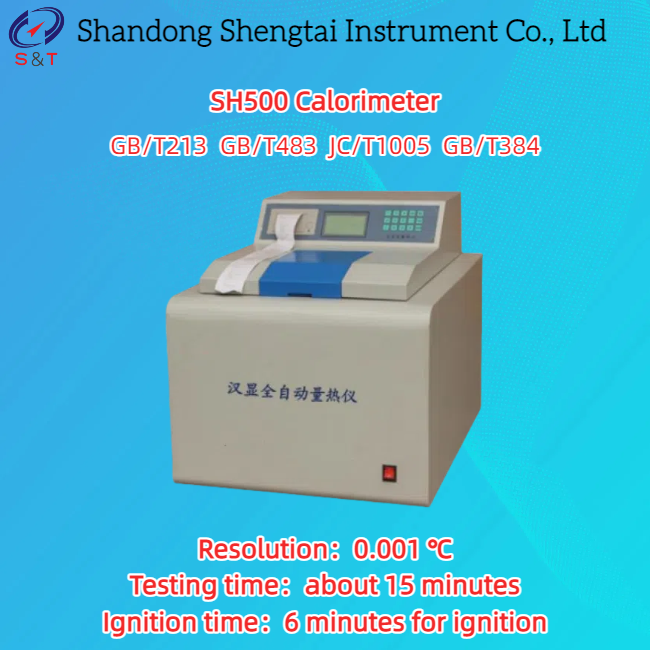

SH500 Calorimeter

Adopting standards:

GB/T213-2008 "Method for determination of calorific value of coal", GB/T483-2007 "General provisions for coal analysis test methods", JC/T1005-2006 "Method for determination of calorific value of cement black raw materials", GB/T384 "Method for determination of calorific value of petroleum products"

Scope of application:

Calorimeter is mainly used to determine the calorific value index of solid combustibles such as coal, coke, and gangue, in order to measure the quality of the tested substance. Widely applicable to industries such as power, coal, metallurgy, petrochemicals, quality inspection, and environmental protection. It is the main instrument in the coal quality laboratory

Performance characteristics:

Controlled by a microcontroller, using LCD Chinese display for temperature and time, accurate and reliable, intuitive display, and easy operation.

The instrument has automatic ignition, automatic mixing, and automatic printing of test results. Real time display of temperature time curve, automatic judgment of ignition circuit on/off.

Reasonable structure, reliable performance, with fault display function, easy to learn and use.

The single sample testing time is about 15 minutes, and the test results can be used as arbitration analysis.

Main technical indicators:

● Heat capacity: approximately 10500J/K

● Resolution: 0.001 ℃

● Testing time: about 15 minutes

● Outer water tank capacity: 30L

● Internal water cylinder capacity: approximately 2.3L

● Ignition voltage: 24V

● Ignition time: 6 minutes for ignition

● Measurement accuracy: in accordance with the national standard GB/T213-2003

● Accuracy of heat generation test: better than 0.2% (benzoic acid)

● Temperature measurement range: 0 ℃ ～ 65 ℃

● Power supply voltage: AC220V ± 10% 50Hz

● Power: ＜ 300W

● Temperature range: 5 ℃ ～ 40 ℃

● Quantitative error: ≤± 1g

● Measurement error: superior to national standards

● Dimensions: 460 × 440 × 580 mm

● Outer dimensions of packaging box: 720 × 580 × 610mm

● Host weight: approximately 30kg

● Weight including packaging box: 43 kilograms

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
