SH417 High Temperature High Shear Tester ASTM D5481 7mL Sample

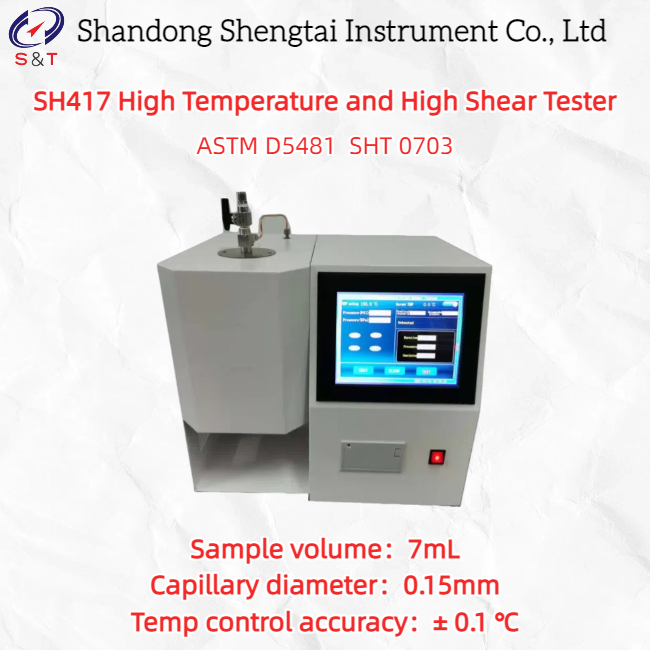

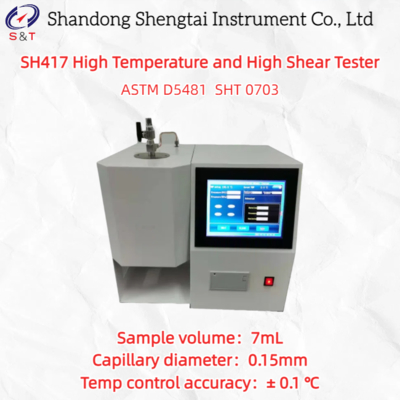

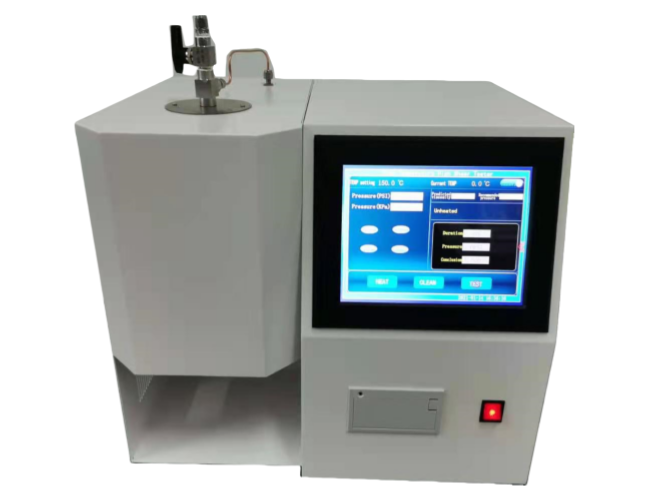

SH417 High Temperature and High Shear Tester

The SH417 high-temperature and high shear tester is a petroleum product testing instrument manufactured in strict accordance with the technical requirements of the standard test method for measuring apparent viscosity at high temperatures and high shear rates using a multi capillary viscometer according to ASTM D5481. It is suitable for determining the apparent viscosity of lubricating oil at high temperature and high shear rate, that is, measuring the high-temperature and high shear dynamic viscosity of lubricating oil, HTHS index. It is also applicable to determine the dynamic viscosity and high-temperature high shear characteristics of lubricating oil under high temperature and high shear rate conditions using the SHT 0703-2001 method for measuring the apparent viscosity of lubricating oil under high temperature and high shear rate conditions (multiple capillary viscometer method).

The testing principle is to flow the sample out of the capillary viscometer under the pressure of nitrogen (carbon dioxide) under the test conditions of 150 ℃± 0.1 ℃. The apparent shear rate of the capillary viscometer can be determined by the flow time and pressure of the sample, and the viscosity of the oil corresponding to the measured pressure can be obtained by calibrating the curve of each viscometer cell.

The instrument combines the advantages of various domestic and foreign products, and has made a series of improvements in appearance design and operating program functionality, making the instrument more satisfactory to users

All accessories of the instrument are made of imported original components and processing technology, and can be exchanged with imported instruments

The dedicated high shear viscosity microcomputer software makes the testing process of the instrument simpler, more accurate, and convenient

The instrument measurement units are calibrated using American Keneng standard oil, and the experimental data is accurate and reliable

The instrument is equipped with a dedicated pressure reducing valve, making it convenient for users to connect gas cylinders and operate them.

The glass capillary tube can be completely interchangeable with imports, fully meeting the requirements of ASTM and SH/T standards, with a diameter of 0.15mm and a length of 15-18mm

The experimental data is stored by a computer and can be automatically printed.

Made of all aluminum material, neat and beautiful, with a compact size

The large touch LCD screen can intuitively display all parameters, temperature, flow changes, and other information of the experiment

Technical parameters:

● Applicable standard: ASTM D5481 SH/T0703

● Heating method: Imported electric heating rod heating

● Test temperature: normal temperature ～ 150 ℃

● Temperature control accuracy: ± 0.1 ℃

● Work unit: 1 unit of management

● Capillary diameter: 0.15mm

● Capillary length: 15 ～ 18mm

● Pressure range: 350Kpa ～ 3500Kpa

● Pressure control accuracy: ± 0.1%

● Sample volume: 7mL

● Environmental requirements: 15 ℃ ～ 30 ℃, relative humidity 10% to 75% (no condensation), installation category II

● Operating interface: Large touch LCD screen

● Data content: test pressure, test time, sample constant temperature time, test records, test results

● Result calculation: microcomputer automatic calculation, automatic storage touch screen, automatic micro printing

● Working power supply: AC220V/50HZ

● Working gas source: requires external nitrogen or carbon dioxide, with pressure reducing valve, maximum pressure not less than 3500kPa (500psi) (self provided)

● Instrument size: 400 * 430 * 850mm

● Net weight of the instrument: 35KG

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
