Petroleum Product Sealing Adaptability Index Tester Normal Temp~200 ± 1 ℃ IP278

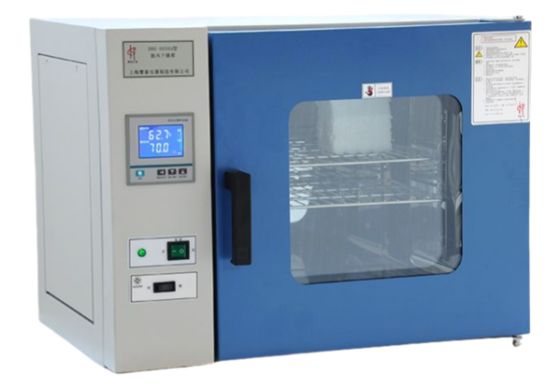

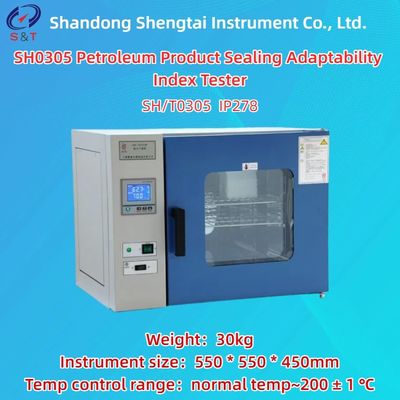

SH0305 Petroleum Product Sealing Adaptability Index Tester

SH0305 Petroleum Product Sealing Adaptability Index Tester is suitable for measuring various types of petroleum products, but not suitable for measuring petroleum products with water content. Measure the inner diameter of the rubber ring with a conical gauge, then soak the rubber ring in a sample at a certain temperature for 24 hours, remove and cool it, and measure the change in the inner diameter of the rubber with a conical gauge.

Main features:

● Stainless steel lining with fan, inner dimensions 350 * 350 * 350 mm. High efficiency thermal insulation;

● Microcomputer LCD PID control temperature, accuracy of 0.1 ° C, temperature sensor is Pt100 RTD;

● Working range: Room temperature~200 ° C ± 1 ° C (test temperature is 100 ° C);

● Over temperature safety protection; Stainless steel heater;

● Install 300 * 200mm glass windows on the double layered doors for easy observation;

● Standard alloy steel gauge;

● The instrument includes a convection oven designed according to standards, with a maximum temperature of 200 ° C

Technical Parameter

● Applicable standard: SH/T0305 IP278

● Power supply: AC220 ± 10% 50Hz ± 5%

● Heating method: electric heating wire heating

● Temperature control method: PID temperature controller

● Temperature control range: normal temperature~200 ± 1 ℃

● Working voltage: 10KV ± 2%

● Instrument size: 550 * 550 * 450mm

● Weight: 30kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing List for SH/T0305 Sealing Index Tester for Petroleum Products:

Customers need to prepare test supplies:

● Measuring cylinder: 50ML

● Bamboo tweezers: length 150-200mm

● Scissors

● Filter paper

● Petroleum CnH2n+2: analytical grade, 60-90 ℃

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
