Fully Automatic Pour Point Cold Filter Point Measuring Instrument Single Hole ASTM D97

Place of Origin China
Brand Name Shandong Shengtai Instruments Co., Ltd.
Certification GB/T510 SH/T 0248 GB/T3535
Model Number SH0248CQ
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15 work days
Payment Terms T/T
Supply Ability 10000 sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Human Computer Interface 7-inch Color LCD Touch Screen Experimental Cold Trap 1 Unit
Number Of Test Holes Single Hole Temp Range +30 ℃ ~ -70 ℃
Temp Control Accuracy < ± 0.1 ℃ Output Format CSV Or Excel
Leave a Message
Product Description

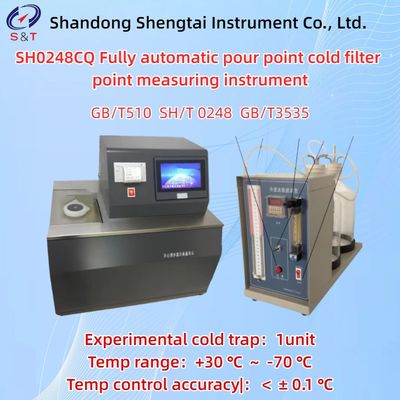

SH0248CQ Fully automatic pour point cold filter point measuring instrument

The SH0248CQ fully automatic pour point, pour point, and cold filter point measuring instrument is based on the national standards GB/T 510 "Determination of pour point of petroleum products", SH/T 0248, and GB/T3535. It adopts modern advanced technology and integrates mechanical, optical, electronic, and computer technologies to automatically complete the testing of pour point, pour point, and cold filter point of petroleum products. This instrument uses photoelectric detection technology, glass test tube automatic tilt method, and imported compressor refrigeration system to ensure the required refrigeration depth.

Technical parameters and characteristics:

Standards GB/T510 SH/T 0248 GB/T3535
Human computer interface 7-inch color LCD touch screen
Refrigeration method Fully enclosed high-efficiency refrigeration compressor
Experimental cold trap 1 unit
Detection method Imported photoelectric switch detection
Number of test holes single hole
Temp range +30 ℃ ~ -70 ℃
Temp control accuracy < ± 0.1 ℃
Sample size Place at the scale line of the test tube
Refrigeration medium metal bath refrigeration
Printer Small thermal printer
Storage method 199 sets
Result output Can be equipped with USB drive output
Output format CSV or Excel
Instrument size 650 * 480 * 620mm
Instrument weight 75kg
Packaging size 690 * 520 * 660
Packaging weight 80kg

Fully Automatic Pour Point Cold Filter Point Measuring Instrument Single Hole ASTM D97 0

● Compliant with standards: GB/T510 SH/T 0248 GB/T3535

● Human computer interface: 7-inch color LCD touch screen;

● Refrigeration method: Fully enclosed high-efficiency refrigeration compressor.

● Experimental cold trap: 1 unit

● Detection method: Imported photoelectric switch detection

● After upgrading, historical data can be stored for easy retrieval; It can also be equipped with USB output function.

● Standard micro printer with automatic measurement and printing

● After the experiment is completed, if there is no personnel operation, the automatic shutdown time of the refrigeration machine can be set arbitrarily within 0-50 minutes to avoid frequent opening of the compressor and extend the service life of the instrument,

● Standard micro printer with automatic measurement and thermal printing

● Number of test holes: single hole

● Temperature range:+30 ℃ to -70 ℃

● Temperature control accuracy: < ± 0.1 ℃

● Sample size: Place at the scale line of the test tube

● Refrigeration medium: metal bath refrigeration

● Printer: Small thermal printer

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Data memory: The memory of the microcomputer instrument can be expanded to 16GB.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Instrument size: 650 * 480 * 620mm

● Instrument weight: 75kg

● Packaging size: 690 * 520 * 660

● Packaging weight: 80kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.



Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Fully Automatic Pour Point Cold Filter Point Measuring Instrument Single Hole ASTM D97 1

Packing list

Number Name Quantity Unit Note

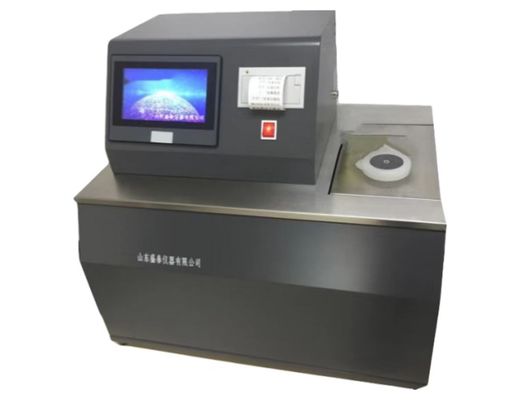

1 Fully automatic cold filter point tester 1 Unit
2 Cold filtration point suction filtration device 1 Unit
3 Cold filtration point test tube 1 Piece
4 Pipette 1 Piece
5 Suction filter head component 1 Set Brass shell, nut, filter screen, etc
6 Pour point test tube 1 Piece
7 Tilt point sensor 1 Set
8 Condensation test tube 1 Set
9 Condensation point sensor 1 Set
10 Plastic tie Several   L*W:100 * 2mm
11 Silicone tube left and right 1 Root
12 Fuse 1 Piece
13 Power line 1 Copy
14 Instructions 1 Copy
15 Packing list 1 Copy
16 Certificate of Conformity Warranty Card 1 Copy
