2 Holes Fully Automatic Rotary Oxygen Bomb Analyzer Metal Bath Accuracy ± 2 ‰ ASTM D2272

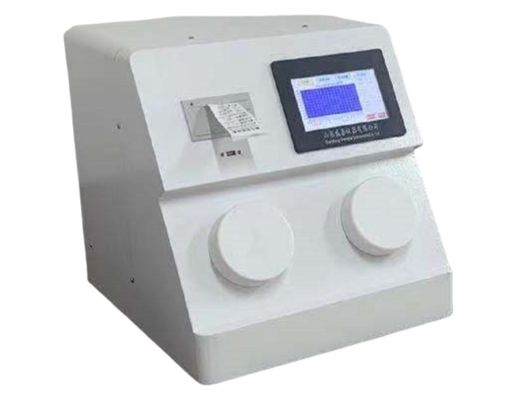

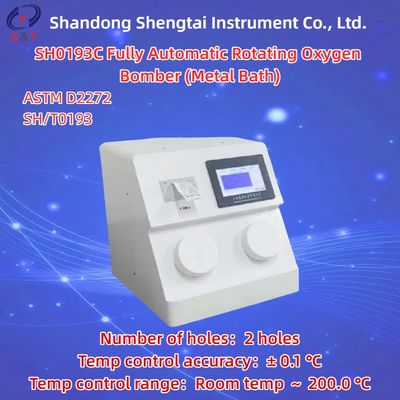

SH0193C Fully Automatic Rotating Oxygen Bomber (Metal Bath)

The SH0193C fully automatic rotary oxygen bomb tester is designed and manufactured according to Method B of the national standard ASTM D2272-2009 "Determination of Oxidation Stability of Lubricating Oil" metal bath standard, and also complies with SH/T0193-2023. Suitable for evaluating the oxidation stability of new and in use turbine oil with the same composition (base oil and additives). It can also be used to evaluate new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol as a rapid method for assessing their oxidation stability. The test results are used to verify the performance of new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol or 2,6-di-tert-butylphenol or both, and can be continuously controlled for each batch of oil.

Performance characteristics

● Used for new oil, in use oil, steam turbine oil, lubricating oil, insulation oil, and automotive gasoline engine oil, etc.

● The metal measuring cell reduces the unpleasant odor emitted by the medium oil during testing and eliminates the potential dangers that may arise due to prolonged experimental time.

● It can automatically perform pressure detection, data recording, oxidation time calculation, and automatically end the test on the tested oil sample.

● Metal bath heating does not require the use of liquid media.

● Easy ventilation, no need to place it in a fume hood, exhaust gas and odors can be easily discharged through plastic pipes.

● Can control up to 2 sets of experiments simultaneously

● Sample temperature sensor component: can measure the temperature of the sample during the testing process

● Instrument display: 7-inch color touch screen, beautiful and elegant interface, simple operation

● High degree of automation: automatic constant temperature, automatic oxygen filling, automatic leak detection, automatic recording of test data and real-time display of curves, automatic detection of test inflection points, and automatic cutting off of heating after the test is completed.

Microprinter: Panel type thermal sensitive.

● Adopting imported PT100 temperature sensor

● High precision air pressure sensor with high sensitivity

Technical parameters:

● Power supply: AC220V ± 10%

● Heating tube power: 2500W

● Pressure sensor range: 0-1.6 MPa, accuracy: ± 2 ‰

● Temperature control range: Room temperature ～ 200.0 ℃

● Temperature control points can be set: 140.0 ℃, 150.0 ℃

● Temperature control accuracy: ± 0.1 ℃

● Number of holes: 2 holes

● Rotating mechanism speed: 100 ± 5r/min

● Angle between oxygen bomb and horizontal plane: 30 °

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Standard printing: Standard micro printer with automatic measurement and thermal printing

● Instrument net size: 460 * 505 * 470 (length, width, height)

● Net weight of the instrument: 27KG

● Packaging instrument size: 555 * 515 * 535mm (length, width, height)

● Packaging weight: 33kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
