Composite Soap Based Grease Adhesion Tester Motor Speed 100 ～ 350 ± 10r/Min SH/T 0469

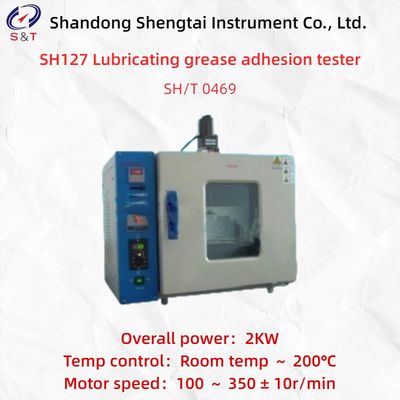

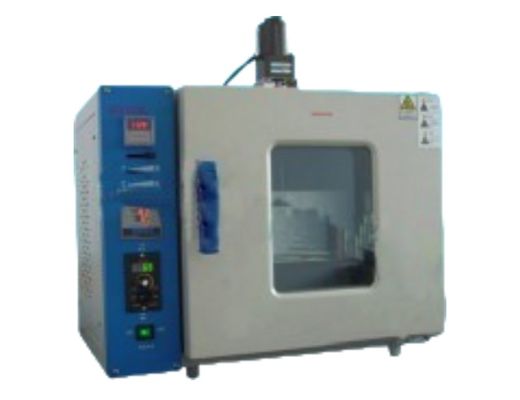

SH127 Lubricating grease adhesion tester

SH127 Lubricating grease adhesion tester, manufactured in accordance with SH/T 0469 standard, is suitable for measuring the adhesion of lubricating grease to metal surfaces. The working temperature of this instrument can be raised from room temperature to 200 ℃. Within this range, the working temperature can be set arbitrarily according to the needs of the work. After setting, the automatic control system inside the box keeps the temperature constant within the specified range. The temperature control system adopts a digital PID temperature controller to control the temperature, which has the characteristics of high temperature control sensitivity and stable operation.

Main technical parameters:

● Temperature control method: digital PID temperature controller

● Temperature control: adjustable from room temperature to 200 ℃

● Heating method: stainless steel electric heating tube heating

● Motor speed: adjustable from 100 to 350 ± 10r/min

● Timing method: digital timer timing, time can be adjusted freely

● Working power supply: AC220V ± 10% 50Hz

● Overall power: 2KW

● Instrument size: 450 * 380 * 520mm

● Weight: 30kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
