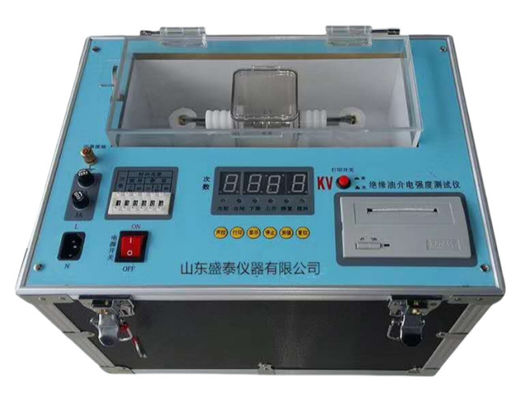

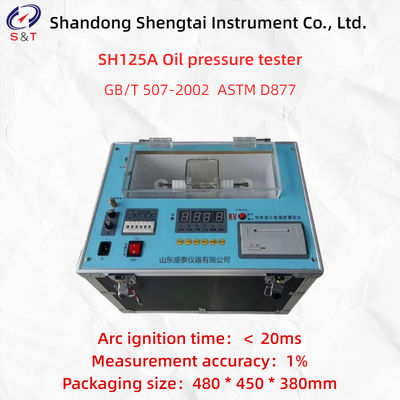

SH125A Oil pressure tester (voltage breakdown tester)

SH125A oil withstand voltage tester is one of the routine tests for oil quality and electrical performance of oil immersed high-voltage electrical equipment. According to the revised "Electricity Coefficient Oil Quality Test Method" by the Ministry of Electric Power, it complies with GB/T 507-2002 "Determination of Insulation Oil Breakdown Voltage". A dielectric strength tester for insulation oil has been developed. This product is made of dry aluminum alloy shell, which is lightweight, easy to carry, suitable for power coefficient and on-site use by users. Compared with similar products, this product has the advantages of easy operation, high efficiency, and accurate measurement, and is an ideal testing instrument for testers.

Technical performance

● Power supply voltage: AC220V ± 10% 50HZ ± 5%

● Measurement range: AC 0-80KV

● Equipment capacity: 0.5KVA

● Booster capacity: 1.5kVA

● Limited current: 5mA

● Input voltage: 200V/50Hz

● Output test voltage: 0-80KV

● Voltage meter indication error: ± 5%

● Boosting speed: 2KV/s ± 20%

● Voltage regulation speed: 2KV/S ± 10%

● Reservation settings: times 1-9

● Static time: 0-10min39s

● Mixing time: 0-1min39s

● Arc ignition time: ＜ 20ms

● Measurement accuracy: 1%

● Usage conditions: ambient temperature 10 ℃ -35 ℃

● Relative humidity: ≤ 75%

● Oil cup gap: 2.5mm (diameter of oil cup plug gauge)

● Boosting speed: Choose from four levels: 2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s

● Packaging size: 48 * 45 * 38cm

● Weight: 25kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
