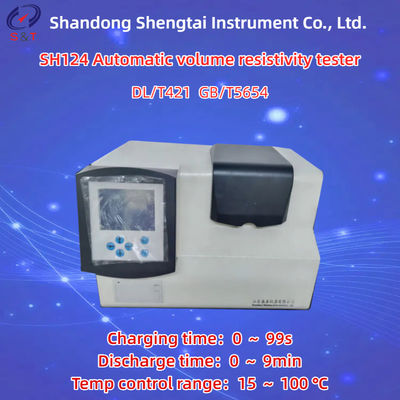

SH124 Automatic volume resistivity tester

The SH124 automatic volume resistivity tester is designed and manufactured according to the requirements of the power industry standard DL/T421-2009 for measuring the volume resistivity of power oil in the People's Republic of China. It is used to measure the volume resistivity of liquid media such as insulating oil and fire-resistant oil.

The SH124 fully automatic volume resistivity measuring instrument adopts MCS-51 series microcontroller as the system control core, color LCD display, Chinese human-machine dialogue, guided operation, and the measurement process is fully automated (automatic cup change, automatic gear change), and 200 test data are stored in a rolling manner; And developed by combining modern new technological methods.

The entire instrument is designed with advanced technology, reasonable structure, simple operation, safety and reliability. It is a resistivity tester with high technical level and complete performance indicators for similar products at home and abroad. It is particularly useful for oil quality supervision in the power sector, and the test results comply with the national standard DL421-2009 "Determination Method for Volume resistivity of Electric Power Oil".

Technical Parameter

● Execution standards: DL/T421, GB/T5654

● Test range: 2.0 × 105~1.0 × 1013 Ω· M (ohms) Rice)

● Repeatability testing accuracy (volume resistivity):

When the volume resistivity is greater than 1.0 × 1010 Ω· m, the relative error is 25%

When the volume resistivity is ≤ 1.0 × 1010 Ω· m, the relative error is 15%

● Reproducibility testing accuracy (volume resistivity)

When the volume resistivity is greater than 1.0 × 1010 Ω· m, the relative error is 35%

When the volume resistivity is ≤ 1.0 × 1010 Ω· m, the relative error is 25%

● Test voltage: 500 VDC with a high error of 0.5%

● Constant temperature time: 0-59 minutes

● Charging time: 0-99 seconds

● Discharge time: 0-9 minutes

● Temperature control range: 15-100 ℃

● temperature control accuracy ± 0.5 ℃

● Electrode cup parameters:

Electrode type: Three terminal electrode, dual temperature control for inner and outer electrodes

Electrode Material: Special Steel

Insulation material: Polytetrafluoroethylene

Electrode spacing: 2.0 mm

Empty cup capacitor: 30.0 pF

Insulation resistance of empty cup:>3.0 × 1012 Ω

● Power supply: AC 220V ± 10%, 50Hz ± 5%

● Power: ≤ 500w

● Work environment:

● Temperature range of 10-35 ℃

● Humidity ≤ 85%

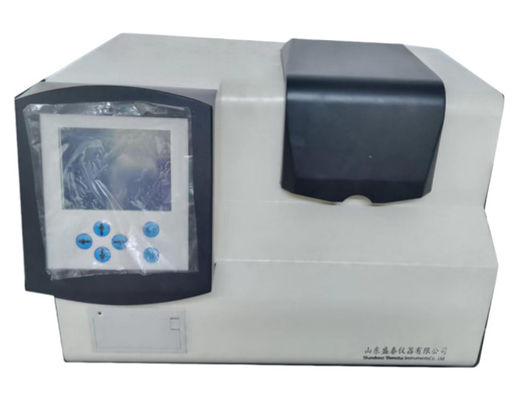

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
