4 Holes Petroleum Emulsification Tester 500 Storage Records Resolution ≤ 0.01 ℃ ASTM D1401

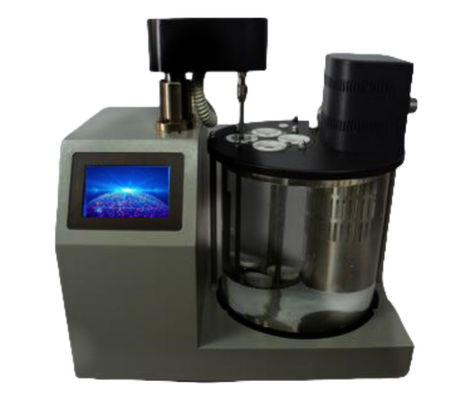

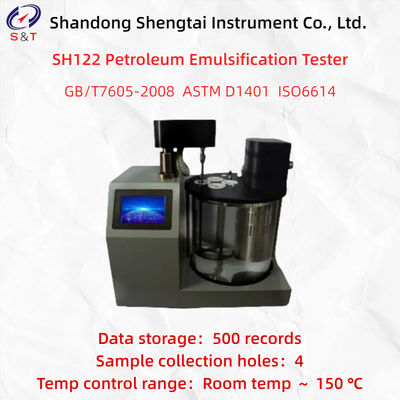

SH122 Petroleum Emulsification Tester

The SH122 petroleum demulsifier is used to determine the ability of petroleum synthesis liquids to separate from water. Compliant with GB/T7605-2008 Determination of Emulsification Degree of Steam Turbine Oil in Operation and GB/T7305-2003 Determination of Water Separation of Petroleum and Synthetic Liquids, the constant temperature bath adopts a small cylinder body, which is easy to operate, accurate in measurement, and aesthetically pleasing in appearance. It is a new type of instrument introduced domestically. ASTM D1401 ,ISO6614

Petroleum emulsion breaking: Under specified test conditions, the same volume of test oil and distilled water are stirred to form an emulsion, and the time required to achieve separation (i.e. when the volume of emulsion at the oil water separation interface is equal to or less than 3mL) is measured. Just read the separation time (min), no need to calculate.

Technical specifications and instrument features:

● Adopting a 5-inch high-definition color touch screen, the interface display is clear and the operation is easy to use.

● The instrument can simultaneously separate 4 samples.

● Adopting PID temperature control technology, the temperature control accuracy is high.

● Automatic lifting and lowering of the mixing device; Mechanical transmission is noise free, stable and reliable.

● Adopting imported PT100 temperature sensor with high temperature measurement accuracy.

● Parameters such as temperature control and fine adjustment can be set, and the instrument can be saved after the settings are completed.

● Can save 500 historical records for easy reference.

● Sample collection holes: 4

● Temperature control range: Room temperature ～ 150 ℃

● Resolution: ≤ 0.01 ℃

● Temperature control accuracy: ± 0.05 ℃

● Timing range: freely set from 0 ～ 99 minutes

● Frequency: 50HZ ± 5%

● Power supply voltage: AC220V ± 10%

● Instrument size: 480 * 300 * 530mm

● Net weight of the instrument: 24kg

● Packaging size: 550 * 380 * 550mm

● Packaging weight: 28kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

synthetic liquid water separability tester is designed and manufactured in accordance with the national standard GB/T7305 ASTM D1401. This instrument is suitable for measuring oils with a kinematic viscosity of 28.8~90mm²/s at 40℃. The test temperature is 54±1℃. It can also be used to determine oils with a kinematic viscosity greater than 90mm²/s at 40℃, but the test temperature is 82±1℃.
