Petroleum Product Ash Analyzer Room Temp ～ 1000℃ Sulphated Ash ASTM D482

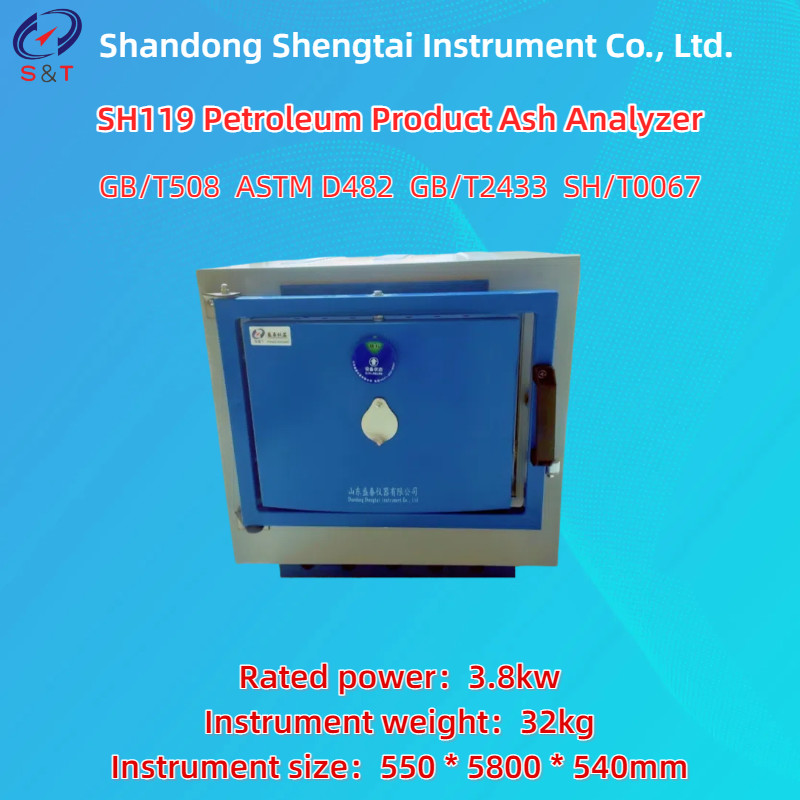

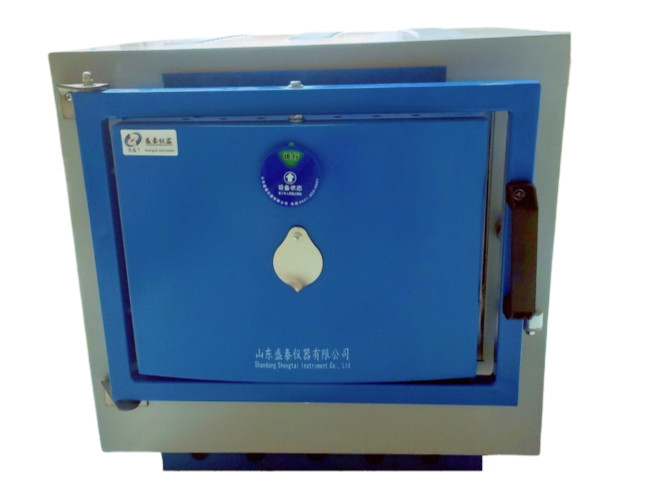

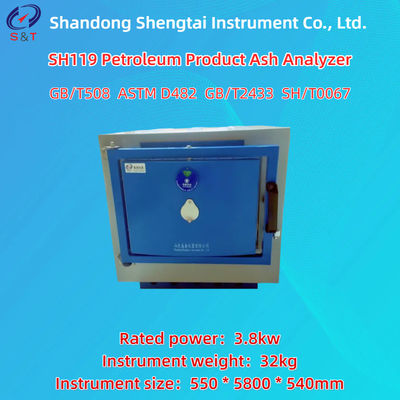

SH119 Petroleum Product Ash Analyzer

The SH119 petroleum product ash analyzer is designed and manufactured according to the standards of GB/T508 "Determination of Ash Content in Petroleum Products", ASTM D482. GB/T2433 "Determination of Sulfate Ash Content in Additives and Lubricating Oils with Additives", and SH/T0067 "Determination of Ash Content in Engine Coolants and Rust Inhibitors", and is used to determine the ash content of lubricating oil products and lubricating grease sulfates. This instrument is suitable for the determination of ash content in petroleum products containing raw ash additives (including certain phosphorus containing compounds), lubricating oils containing lead, and used engine crankcase oils. The instrument uses a new type of ceramic furnace as the heating element, which is suitable for detecting the ash content of sulfates in lubricating oil containing additives and additive concentrates of blended lubricating oil.

Main technical parameters, indicators, and performance characteristics:

● The shell is made of steel plates welded by folding, and the surface is electrostatically sprayed. The heating element is high-quality silicon carbon rod, and the insulation material is high-quality aluminum silicate fiber.

● The furnace is made of alumina ceramic fiber, which has the characteristics of fast heating speed (about 30 minutes to reach 1000 ℃) and good insulation effect (when reaching 1000 ℃, it is not hot to touch the shell by hand).

● The control part adopts microcomputer PID control function, and can also configure intelligent program instruments according to user needs. It can set temperature rise and insulation in sections and has over temperature alarm timing function.

● Working power supply: AC220V ± 10% 50Hz

● Rated power: 3.8kw

● Heating range: Room temp ～ 1000 ℃

● Temperature control: 775 ± 25 ℃

● Temperature control element: thermocouple

● Empty furnace heating time: ≤ 60 minutes

● Uniformity of furnace temperature: ≤ 15 ℃

● Inner container size: 300 * 200 * 140mm D * W * H

● Instrument size: 550 * 5800 * 540mm

● Instrument weight: 32kg

● Packaging size: 680 * 650 * 620mm

● Packaging weight: 40kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
