Semi Automatic Grease Wide Temperature Drop Point Meter Aluminum Bath Heating ASTMD2265

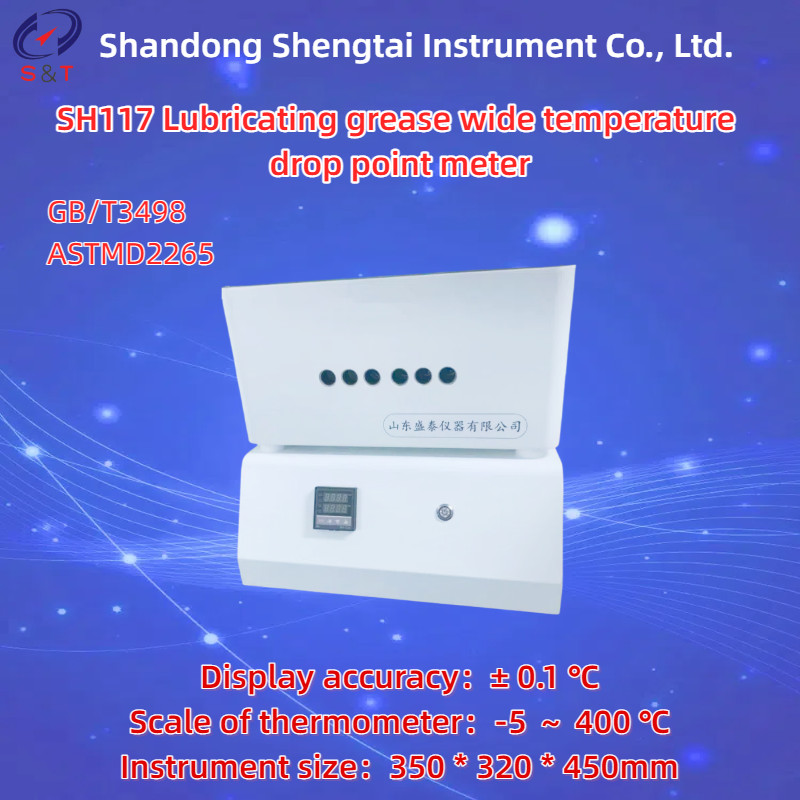

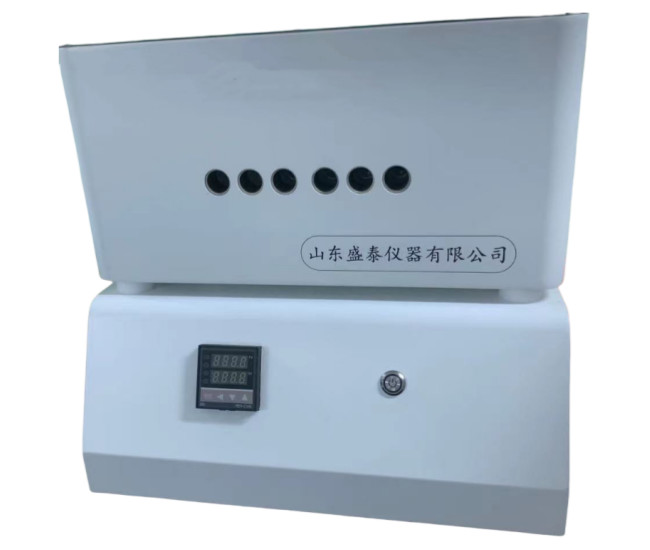

SH117 Lubricating grease wide temperature drop point meter

The SH117 lubricating grease wide temperature range drop point tester is used to determine the wide temperature range drop point of lubricating grease according to standards such as GB/T3498-2008 "Lubricating grease wide temperature range drop point determination method" and ASTMD2265, that is, the temperature at which the lubricating grease reaches a certain fluidity under specified tests.

Technical specifications and parameters

● The wide temperature lubricating grease drop point measuring instrument is suitable for measuring the drop points of lubricating grease over a wide temperature range, meeting the requirements of GB/T 3498 "Lubricating grease wide temperature range drop point measuring method" standard.

● The wide temperature lubricant drop point tester uses aluminum bath heating, and the temperature of each hole must be consistent.

● The wide temperature lubricant drop point tester can simultaneously test 6 samples.

● Measurement range: Room temperature to 400 ℃, controlled by a digital meter for constant temperature and stability.

● Display accuracy: ± 0.1 ℃.

● The material of the grease cup is chrome plated brass, equipped with 6 pieces.

● Fat cups and test tubes must comply with the provisions of GB/T3498.

● The scale of the thermometer is -5~400 ℃, and the actual temperature measurement is at a minimum scale of 1 ℃ when reaching 400 ℃, which complies with the provisions of GB/T514-83.

● The wide temperature lubricant drop point tester meets the safety requirements of GB/T 32705 "Safety Specification for Laboratory Instruments and Equipment - Power Supply for Instruments".

● Instrument size: 350 * 320 * 450mm

● Instrument weight: 15kg

● Packaging size: 430 * 420 * 530mm

● Packaging weight: 18kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
