2 Samples Foam Extinguishing Agent Setting Point Tester GB15308 Metal Bath accuracy ± 0.5℃

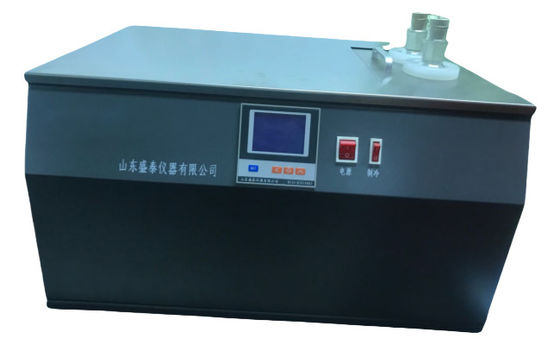

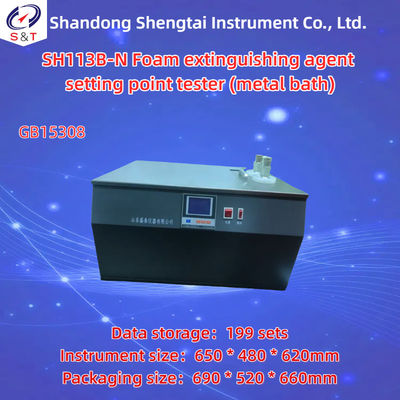

SH113B-N Foam extinguishing agent setting point tester (metal bath)

The condensation point is the highest temperature, expressed in degrees Celsius, at which the test oil is cooled in a test tube under specified test conditions until the liquid level does not move.

SH113B-N freezing point instrument for foam extinguishing agent is designed and manufactured according to the requirements of GB15308 foam extinguishing agent freeze thaw resistance, and is applicable to the determination of the freezing point of foam extinguishing agent according to the methods specified in the above standards.

Main technical specifications, parameters, and performance characteristics:

● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

● The output mode is a small LCD display with good temperature control stability.

● The host is heated by a metal bath, without the need to replace the medium alcohol, and the temperature drops quickly.

● Imported stacked compressor

● Working power supply: AC220V ± 10% 50Hz

● Temperature control range: room temperature ～ -70 ℃

● Temperature control accuracy: ± 0.5 ℃

● Refrigeration system: New type of refrigeration compressor (dual compressor)

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption:<1500W

● Packaging size: 890 * 530 * 480mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

SH113E full-automatic foam extinguishing agent setting point meter

SH113E foam extinguishing agent freezing point instrument is designed and manufactured according to the requirements of GB15308 foam extinguishing agent anti freezing and thawing, and is applicable to determining the freezing point of foam extinguishing agent according to the methods specified in the above standards. The fully automatic pour point analyzer adopts modern advanced technology, integrating mechanical, optical, electronic, and computer technology, and can automatically complete the testing of the pour point of petroleum products. This instrument adopts photoelectric detection technology, glass test tube automatic tilting method, and imported compressor refrigeration system to ensure the required refrigeration depth.

Compliant with standard: GB15308

The condensation point is the highest temperature, expressed in degrees Celsius, at which a liquid is cooled in a test tube under specified test conditions until the liquid level does not move.

Technical parameters and characteristics:

● Compliant with standard: GB/T510 GB15308

● Human computer interface: 7-inch color LCD touch screen

● Refrigeration method: Fully enclosed high-efficiency refrigeration compressor

● Detection method: Imported photoelectric switch detection

● After upgrading, historical data can be stored for easy retrieval; It can also be equipped with USB output function.

● After the experiment is completed, if there is no personnel operation, the automatic shutdown time of the refrigeration machine can be set arbitrarily within 0-50 minutes to avoid frequent opening of the compressor and extend the service life of the instrument,

● Standard micro printer with automatic measurement and thermal printing

● Number of test holes: single hole

● Temperature range:+30 ℃ ～ -70 ℃

● Temperature control accuracy: ＜ ± 0.1 ℃

● Sample size: Place at the scale line of the test tube

● Refrigeration medium: metal bath refrigeration

● Printer: Small thermal printer

● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;

● Result output: It can also be equipped with a USB drive output function to output to the PC for long-term storage

● Output format: The output format of the result USB drive is CSV or Excel.

● Data memory: The memory of the microcomputer instrument can be expanded to 16GB.

★ Remote upgrade: Equipped with TCP network transmission function, software remote upgrade can be performed later (optional)

★ Data Management: Can be connected to the Limis system (optional)

● Instrument size: 650 * 480 * 620mm

● Instrument weight: 75kg

● Packaging size: 690 * 520 * 660

● Packaging weight: 80kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
