Two Samples Of Alcohol Bath Petroleum Pour Point Analyzer GB/T510

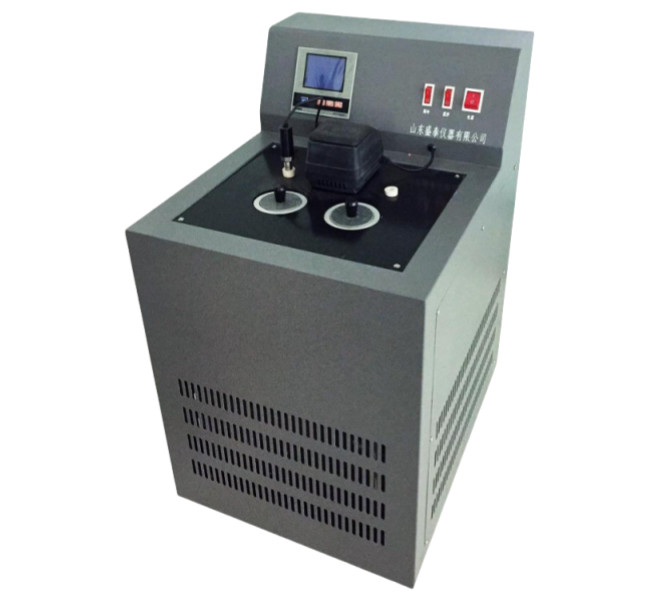

SH113A-N Petroleum Condensation Point Tester (Alcohol Bath)

The SH113A-N petroleum pour point analyzer (alcohol bath) is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T510 "Petroleum pour point determination method", and is suitable for determining the pour point of petroleum products according to the methods specified in the above standards.

The condensation point is the highest temperature of an oil product when it is cooled in a test tube under specified test conditions until the liquid level does not move, expressed in degrees Celsius.

Main technical specifications, parameters, and performance characteristics:

● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

● The output mode is a small LCD display with good temperature control stability.

● The host is cooled by an alcohol bath, which cools down quickly.

Imported stacked compressor

● Working power supply: AC220V ± 10%; 50Hz.

● Temperature control range: room temperature to -70 ℃

● Condensation point measurement range: from room temperature to minus 55 degrees Celsius

● Temperature control accuracy: ± 0.5 ℃

● Refrigeration system: New type of refrigeration compressor (dual compressor).

● Environmental temperature: ≤ 30 ℃.

● Relative humidity: ≤ 85%.

● Power consumption: not exceeding 1500W

● Packaging size: 480 * 530 * 590mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Packing list
