2 Semples Petroleum Cold Filter Point Tester ASTM D6371 Range Room Temp To -70 ℃

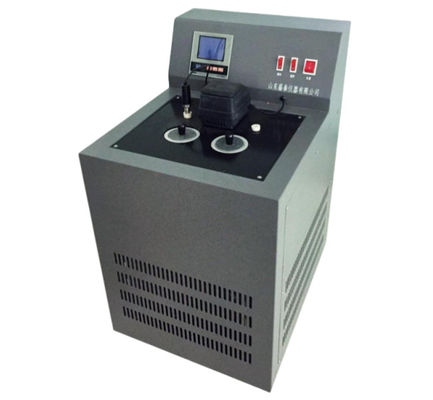

SH113A-L Petroleum Cold Filter Point Tester (Alcohol Bath)

The SH113A-L petroleum cold filter point analyzer (alcohol bath) is designed and manufactured in accordance with the requirements of the People's Republic of China standard SH/T0248, and is suitable for determining the cold filter point of petroleum products according to the methods specified in the above standards.

Compliant with standard: SH/T0248 ASTM D6371 IP306

Main technical specifications, parameters, and performance characteristics:

● Using a compressor for refrigeration, two sets of tests can be conducted simultaneously.

● The output mode is a small LCD display with good temperature control stability.

● The host is cooled by an alcohol bath, which cools down quickly.

Imported stacked compressor

● Working power supply: AC220V ± 10% 50Hz

● Temperature control range: room temperature to -70 ℃

● Cold filter point measurement range: room temperature to -55 ℃

● Temperature control accuracy: ± 0.5 ℃

● Refrigeration system: New type of refrigeration compressor (dual compressor)

● Environmental temperature: ≤ 30 ℃

● Relative humidity: ≤ 85%

● Power consumption: not exceeding 1500W

● Packaging size: 480 * 530 * 590mm

● Weight: 75kg

Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;

----The materials and main components provided meet the technical requirements specified in the technical documentation;

----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).

----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.

----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.

----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.

Packing list
