Lube Oil Anti Wear Abrasion Tester Principles Of Timken Testing Machine Starter

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SRH
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SRH Voltage AC 220V±5% 50-60HZ
Power 120W Steel Ball 14*14
Motor Speed 1400r/min Maximum Load 156KG
Processing Accuracy 0.01mm
High Light

Lube Oil Anti Wear Abrasion Tester

,

Lubricant Oil Friction Analyzer

,

1400r/min Lube Oil Tester

Leave a Message
Product Description

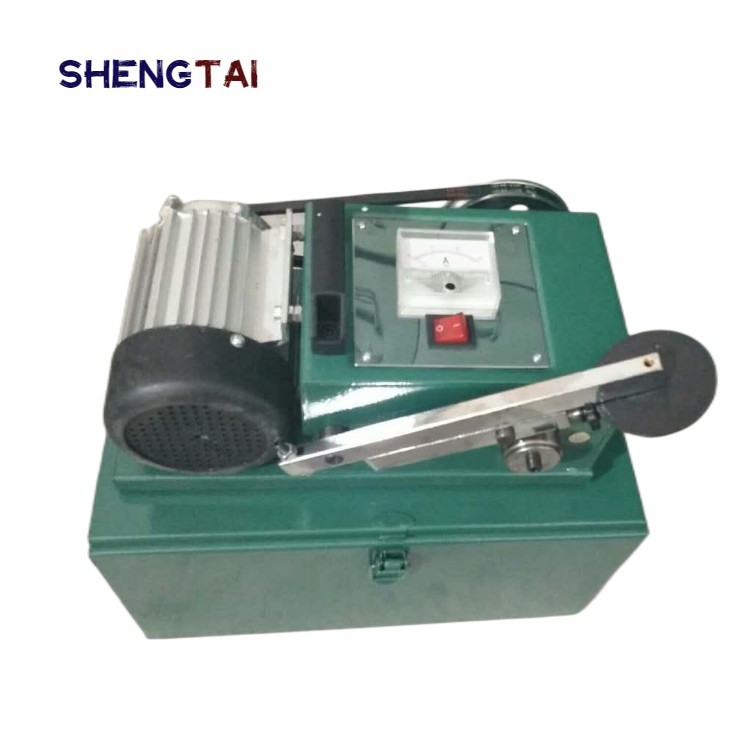

Lube Oil Anti Wear Abrasion Tester/Lubricant Oil Friction Analyzer Principles Of Timken Testing Machine Starter

Lubricating oil anti-wear testing machine parameters:



Voltage AC 220V±5% 50-60HZ
Power 120W
Loading method weight and lever loading
Steel ball 14*14
Motor speed 1400r/min
Maximum load 156KG
Packing method exquisite solid wooden case
Size 340 * 200 * 170mm
Machine weight 23-24kg
Processing accuracy

0.01mm





The working principle of the testing machine:

SRH lubricating oil anti-wear testing machine is designed for lubricating oil and its additives enterprises, according to the United States ring block testing machine (Timken testing machine) test principle, the main functions of the simplified design, and strives to simple operation, reliable performance, fast and intuitive performance of lubricating oil anti-wear and friction reduction.



This lubricating oil anti-wear testing machine adopts integrated design to effectively reduce the vibration and noise in the work, its main working parts by a rotating friction ring with the spindle and pressure on the friction ring of the fixed friction column, the test under different pressure conditions, friction ring and friction between the column generated sliding friction.



SRH lubricating oil anti-wear testing machine through the weight and lever composed of the afterforce system, to the friction pair pressure, so that the contact point produces extremely high pressure, in the friction ring rotation process, accelerate the friction column (experimental steel ball) wear to observe and evaluate the bearing capacity of lubricant test device.



Under this particular lubrication condition, 1 minute simulation test is equivalent to the wear of the normal operation of the general machinery for 1 year.

High-grade lubricating oil under the same load wear small, spindle speed does not drop or drop very little.



Because the lubricating oil anti-wear testing machine can quickly and simply reflect the anti-wear and anti-friction performance of lubricating oil, so it is often used in the production, development and promotion of lubricating oil or anti-wear agent with good anti-wear performance.



The lubricating oil anti-wear testing machine should pay attention to the domestic electricity voltage is AC 220 volts, ±5% is appropriate, the electrical system should be properly grounded, the operator should have the common sense of mechanical and electrical safety.

Packing list

S/N Name Unit Quantity Remarks
1 Host set 1
2 Weights piece 10
3 Oil cup piece 2
4 Oilstone piece 1
5 Steel ball capsules 20
6 Instruction copy 1
7 Packing list copy 1
8 Certificate warranty card copy 1
