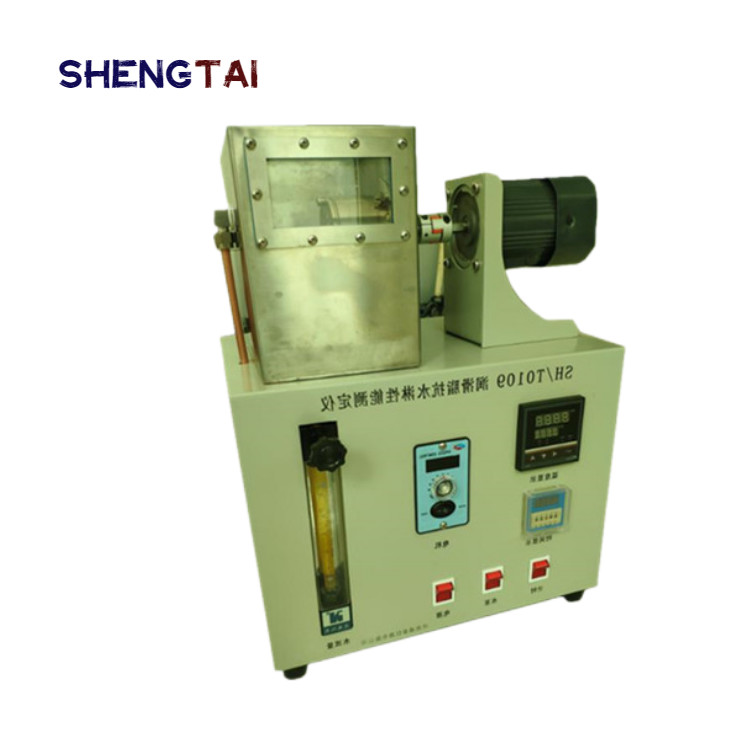

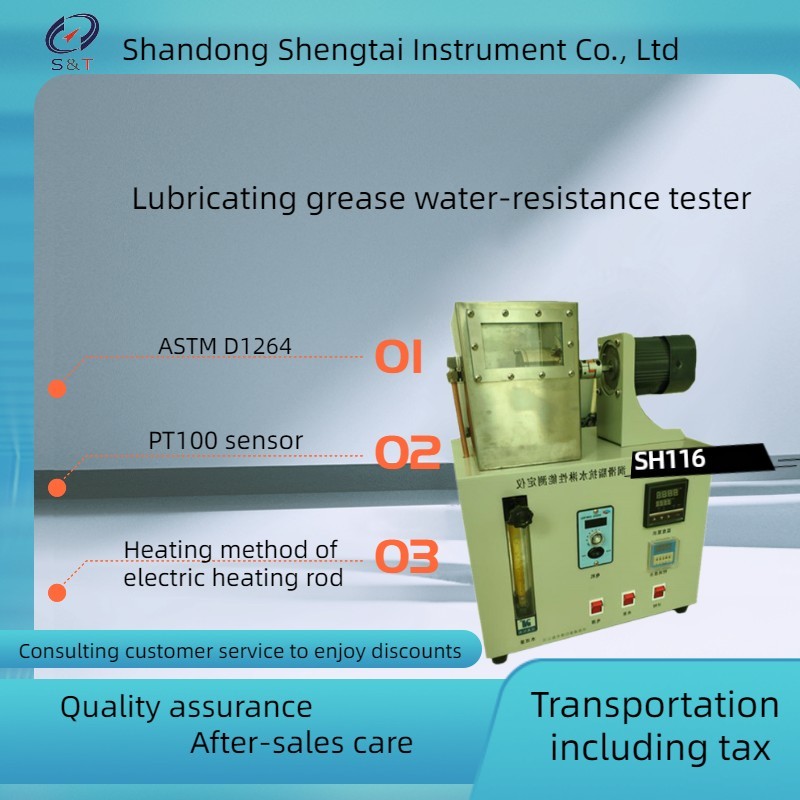

ASTM D1264 Lubricating Grease Water Resistance Tester SH116

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH116
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MODEL SH116 Temperature Control Range Room Temperature-100ºC
Temperature Control Accuracy ±0.1ºC Water Tank Capacity ≥750ml
Water Flow Accuracy 5±0.5ml/s (two Valve Regulation) Bearing Speed Accuracy 600±30r/min
Bearing Specification Type 204 Power Supply AC220V±20%, 50HZ±10%
High Light

ASTM D1264 Water Resistance Tester

,

Lubricating Grease Water Resistance Tester

,

SH116 Water Resistance Tester

Leave a Message
Product Description

ASTMD1264 Lubricating Grease Water Resistance Tester SH116 Tested At 38 ℃ And 79℃

SH116 grease anti-spray performance tester according to SH/T0109-92, ASTMD1264 "grease anti-spray performance measurement method" standard to determine the resistance of grease to water, for the specified experimental conditions, at 38℃ and 79℃ test to evaluate the grease resistance out of the bearing capacity of the new product.

Lubricating Grease Water Resistance Tester Lubricant Water Washout Characteristics Analyzer Oil SPRAY Apparatus

Performance characteristics:

1, the water bath temperature through the PT100 sensor (resistance temperature measurement package) input to the temperature controller, temperature controller internal operation circuit processing, obtain a control signal, the control signal output, so as to complete the heating control

2, the amount of water jet can be directly controlled by circulating pump, large flow valve, nozzle, etc

3, using electric heating rod heating mode, heating speed is fast

4, according to the standard to choose ball bearings, the timer can be accurate to 0.1S

ASTM D1264 Lubricating Greases Water Washout Characteristics Tester

Technical parameters:

Display
Temperature control range Room temperature-100ºC
Temperature control accuracy ±0.1ºC
Water tank capacity ≥750ml
Water flow accuracy 5±0.5ml/s (two valve regulation)
Bearing speed accuracy 600±30r/min
Temperature sensor Platinum resistance (imported grade A PT100)
Bearing specification type 204
Power supply AC220V±20%, 50HZ±10%(can be customized)
Power 600W
Working temperature Room temperature-45ºC
Working humidity ≤85% RH
Dimensions 300×265×425 (mm)
Weight: 46kg
Flume temperature control accuracy ±2℃



Packing list



S/N Name Quantity Unit Remarks
1 Host 1 set
2 power cord 1 Piece
3 Bearing 2 Piece
4 Instructions 1 copy
5 power cord 1 Piece
6 Packing list 1 copy
7 Certificate warranty card 1 copy

ASTM D1264 Lubricating Grease Water Resistance Tester SH116 0

ASTM D1264 Lubricating Grease Water Resistance Tester SH116 1ASTM D1264 Lubricating Grease Water Resistance Tester SH116 2
