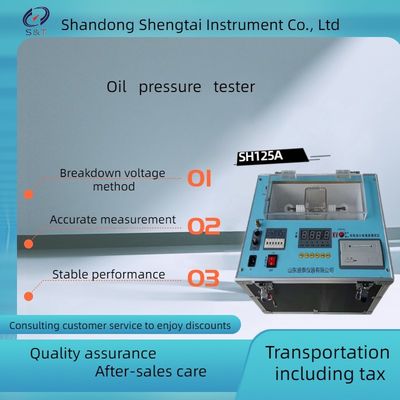

Withstand Voltage Tester For Insulating Oil And Oil Products

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH125A
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH125A Power AC220V±10%,50Hz
Output Test Voltage 0-80KV Equipment Capacit 0.5KVA, Booster Capacity 1.5 KVA
Limiting Current 5mA Input Voltage 200V/ 50HZ
Boost Speed 2KV/ S + 20% Mixing Time 0-1 Min 39 S
Voltage Regulation Speed 2KV/S ± 10%
High Light

SH125A withstand voltage tester


oil withstand voltage tester


SH125A Voltage Tester

Leave a Message
Product Description

Insulating Oil And Oil Products - Determination Of Breakdown Voltage Using A Voltage Tester

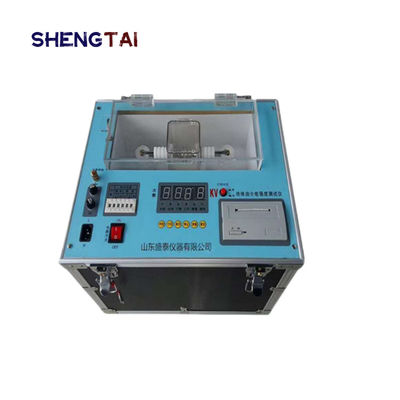

The SH125A oil withstand voltage tester is one of the routine tests for the electrical performance of oil immersed high-voltage electrical equipment. According to the revised "Power Factor Oil Quality Test Method" by the Ministry of Electric Power, which complies with the GB/T 507-2002 Insulation Oil Breakdown Voltage Measurement Method, an insulation oil dielectric strength tester has been developed. The product is a dry aluminum alloy shell with light weight, easy to carry, Compared with similar products, this product has the advantages of simple operation, high efficiency, and accurate measurement, making it an ideal testing instrument for testers.

Insulating Oil Breakdown Transformer Oil Withstand Voltage Tester

Insulating Oil Dielectric Strength Breakdown Voltage Tester

China 0-100kv Automatic Transformer Oil Breakdown Voltage Tester

Oil Dielectric Strength Insulating Oil Dielectric Withstand Voltage Tester

Insulating Oil Breakdown Voltage Tester Transformer Oil Withstand Voltage Tester

SH125A Insulation Oil Withstand Voltage Breakdown Voltage Tester

Second, technical performance

1. Power supply voltage: 220V/ 50HZ

2. Equipment capacity: 0.5KVA

3, input voltage: 200V/ 50HZ

4, the output test voltage: 0-80KV

5, voltmeter indicating error: ±5%

6, boost speed: 2KV/ s + 20%

7. Arc burning time: no more than 20ms

Technique parameters

Power AC220V±10%,50Hz
Output test voltage 0-80KV
Equipment capacit 0.5KVA, Booster capacity 1.5 kVA
Limiting current 5mA
Input voltage 200V/ 50HZ
Boost speed 2KV/ s + 20%
Error ±5%
Boost speed 2KV/s ± 20%
Voltage regulation speed 2KV/S ± 10%
Scheduled setting times 1-9
Quiet time 0-10 minutes and 39 seconds
Mixing time 0-1 min 39 s
Service conditions Temperature 10ºC~35ºC
Humidity ≤75%
Oil cup clearance 2.5mm (oil cup feeler gauge diameter)
Measurement accuracy 1%
Arcing time no more than 20ms
Boost speed 2.0kV/s, 2.5kV/s, 3.0kV/s, 3.5kV/s
Package size: 48 * 45 * 38cm weight: 25kg

Packing list

S/N Name Quantity Unit Remarks



1 set
2 Special oil cup   set
3 power cord 1 copy
4 instruction manual 1 copy
5 Packing list 1 copy
6 Certificate warranty card 1 copy

Withstand Voltage Tester For Insulating Oil And Oil Products 0Withstand Voltage Tester For Insulating Oil And Oil Products 1Withstand Voltage Tester For Insulating Oil And Oil Products 2
