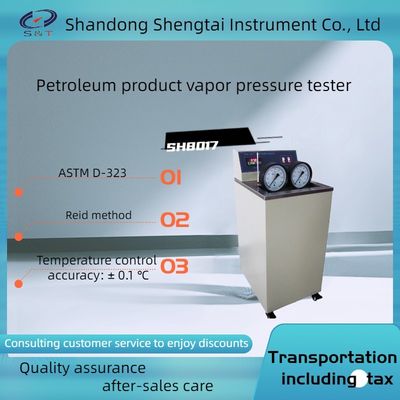

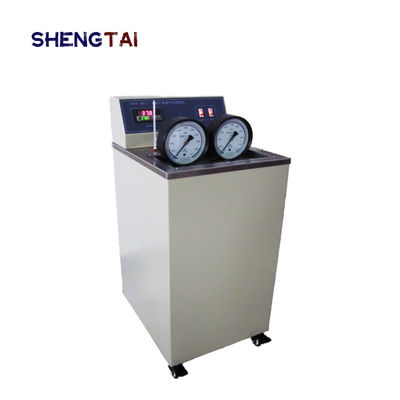

SH8017 Reid Vapor Pressure Tester For Petroleum Products
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH8017 | Working Power Supply | AC220V±10%, 50Hz |
---|---|---|---|
Water Bath Heating Power | 1600W | The Use Of Water Bath Temperature Range | Room Temperature ~90℃ |
Water Bath Temperature Control Accuracy | + 0.1℃ | Pressure Gauge Accuracy | + 0.4% |
Ambient Temperature | -10℃~35℃ | Relative Humidity | ≤85% |
Power Consumption Of The Whole Machine | No More Than 1700W | ||
High Light | SH8017 Vapor Pressure Tester,Reid Vapor Pressure Testing Machine,Petroleum Vapor Pressure Tester |
SH8017 Vapor Pressure Tester For Petroleum Products, Reid Vapor Pressure Testing Machine
Purpose and scope of application
SH8017 steam pressure tester for petroleum products is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T8017 "steam pressure measurement method for petroleum products (Reid method)". It is suitable for measuring the steam pressure of gasoline, volatile crude oil and other volatile petroleum products.
Vapor Pressure Tester for Petroleum Products (Reid method)
ASTM D323 Petroleum Products Vapor Pressure Tester (Reid Method)
vapor pressure tester for petroleum products, Reid Vapor Pressure Testing machine
Petroleum Products Saturated Vapor Pressure Tester (Reid Method)
Reid Method Manual Type Petroleum Product Vapor Pressure Tester
II. Main technical indexes and parameters
1, working power supply: AC220V±10%, 50Hz;
2, water bath heating power: 1600W;
3, the use of water bath temperature range: room temperature ~90℃;
4, water bath temperature control accuracy: + 0.1℃;
5, pressure gauge accuracy: + 0.4%;
6, ambient temperature: -10℃~35℃.
7, relative humidity: ≤85%.
8. Power consumption of the whole machine: no more than 1700W
Description | Parameters |
Input power | AC 220V ± 5% 50Hz |
The use of water bath temperature range | room temperature ~100℃; |
Temperature control accuracy | ± 0.1 ºC |
Heating power | 1.6KW |
Pressure gauge | Round Hand gauge 0 ~ 200KPa |
pressure gauge accuracy | + 0.4%; |
Ambient temperature | -10℃~35℃. |
Relative humidity | <85% RH |
Power consumption of the whole machine: no more than 1700W | |
Package size: 48 * 45 * 75cm weight 50kg |
Packing list
S/N | Name | Unit | Quantity | Remarks |
1 | Vapor pressure meter | set | 1 | |
2 | Steam bomb | set | 2 | |
3 | Pressure gauge | piece | 2 | |
4 | Mercury thermometer | piece | 1 | |
5 | Instruction | copy | 1 | |
6 | Packing list | copy | 1 | |
7 | Certificate warranty card | copy | 1 |
