SH6532A Crude Oil Topped Crude Oil Cracking Residue Oil Salt Content Tester Dual Hole
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMODEL | SH6532A | Working Power Supply | AC (220V ± 10V), 50Hz |
---|---|---|---|
Extractor Heating Power | 300W × 2 | Power Of Thermostat Electric Furnace | 600W |
High Light | Topped Crude Oil Testing Equipment,SH6532A Crude Oil Testing Equipment,Cracking Residue Oil Salt Content Tester |

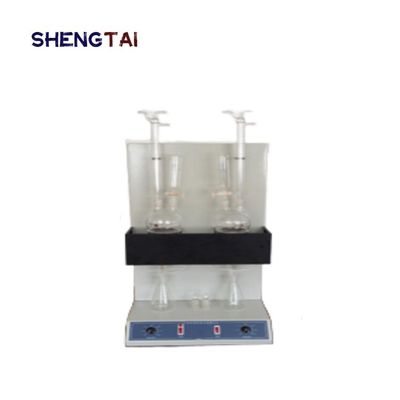

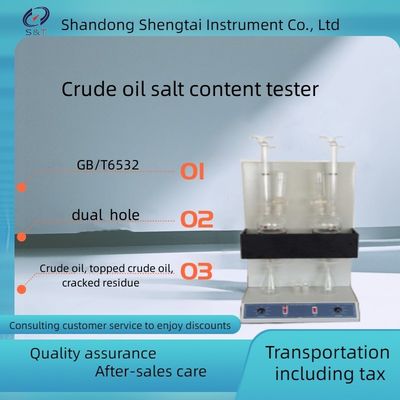

SH6532A Crude Oil, Topped Crude Oil, Cracking Residue Oil Salt Content Tester (Dual Hole)
Salt content of crude oil: applicable to the determination of the total amount of halides in crude oil, topped crude oil, cracking residue, and fuel oil with a concentration of 0.002 to 0.02% by weight. It can also be used to determine the contamination of used turbine oil and marine fuel oil by seawater. When the required precision is not greater than the range specified in this method, it can also be used for other products.
SH6532A crude oil salt content tester (dual hole) is designed and manufactured in accordance with the requirements specified in the People's Republic of China standard GB/T6532 "Determination of Salt Content in Crude Oil and Its Products",
Main structure and installation
1. Instrument structure
(1) Extractor: consisting of a flask and a heating unit, with a flask volume of 500ml; The heating part consists of an electric heating wire wound around the lower end.
(2) Column shaped drip funnel: used to add hot toluene, anhydrous ethanol, acetone, and other reagents for quantitative liquid separation.
(3) Condenser: It condenses the distilled gas.
(4) Water volume regulating valve: The water inlet of the water volume regulating valve is connected to tap water, the water outlet is connected to the water inlet of the condenser, and the water outlet of the condenser is connected to the sewer. Adjust the water inflow of the condenser through this valve.
(5) Thermostatic electric furnace: used to heat the test solution that needs to be heated.
(6) Glass container: with a capacity of 1000ml, it is used to heat the test solution that needs to be heated.
(7) Triangular flask: A ground triangular flask used to receive the solution discharged from the flask.
Triangular bottle stopper: The stopper of a triangular bottle.
(9) 2-core aluminum plug: working power plug for extractor heating wire.
(10) Separating funnel piston: the control piston for the extractor to discharge the solution.
(11) Electrical control box: the electrical part of the control instrument
Note: The voltage adjustment knob 1 (voltage adjustment knob 2) must be adjusted slowly to make the voltage rise slowly. Sudden increase in voltage is not allowed to prevent damage to the device.
Main technical parameters and indicators
1. Extractor: Comply with the specifications and dimensions of glassware in GB/T6532 standard;
2. Extractor heating power: 300W × 2;
3. Power of thermostat electric furnace: 600W;
4. Working power supply: AC (220V ± 10V), 50Hz.
Package size: 550 ×400 × 380mm, weight approximately 12kg
Note: The customer provides a magnetic stirrer and a potentiometric titrator
packing list
S/N | Name | Quantity | Unit | Remarks |
1 | Salt content tester for crude oil and its products | 1 | set | |
2 | 500ml flask (with electric heating wire and plug) | 2 | piece | |
3 | condenser | 2 | piece | |
4 | Cylindrical drip funnel | 2 | piece | |
5 | Ground triangular flask (with lid) | 2 | piece |
