ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method

Place of Origin CHINA
Brand Name Shengtai Instrument
Certification ISO9001
Model Number SH8017B
Minimum Order Quantity 1
Packaging Details wooden case
Delivery Time 7-15work-days
Payment Terms T/T
Supply Ability 100000sets/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
MODEL SH8017B Power Supply AC(220±10%)V, 50Hz
Heating Work Rate ≤1800W Stirring Motor Power 15W
Temperature Control Range Room Temperature ~ 90℃ Temperature Control Accuracy ±0.1ºC
Number Of Hanging Shells 2 Shells Pressure Range (0~200)kPa Or (0~29)psi
Relative Humidity ≤85%
High Light

ASTMD323 Reid Vapor Pressure Tester


Vapor Pressure Tester Reid Method


Saturated Vapor Pressure Tester

Leave a Message
Product Description

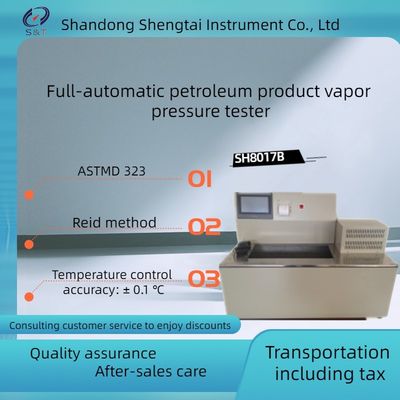

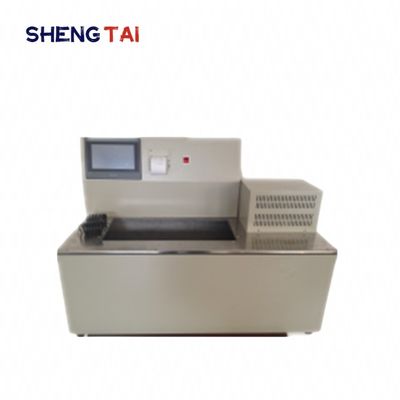

ASTMD323 Fully Automatic Petroleum Products Saturated Vapor Pressure Tester Reid Method

SH8017B Automatic petroleum product vapor pressure tester is designed and manufactured according to GB/T8017 "petroleum product vapor pressure measurement method (Reid method)".

Suitable for measuring the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

The instrument is mainly composed of color LCD touch screen, water bath box and temperature control device, vapor pressure bomb, pressure sensor, mechanical rotation and other parts.

With the use of flexible, easy to move, and with printing, fault self - check and other characteristics.

ASTMD323Fully Automatic Petroleum Products Saturated Vapor Pressure Tester Reid Method)

SH8017B Automatic Reid Method Vapor Pressure Tester for Petroleum Products

SH8017B Automatic Vapor Pressure Tester (Reid Method) for Petroleum Products

ASTM D323 Reid Method Automatic Saturated Vapor Pressure Tester Analyzer


Main Performance Characteristics

1, 7 inch color touch screen, do not need training can be completed according to the screen prompts.

2, Chinese operation interface, page arbitrary switch, simple and convenient operation.

Automatic pressure detection, collection, calculation, automatic temperature control, automatic timing, automatic printing results, super capacity storage function, can store tens of thousands of data, can be queried.

3, Constant temperature water bath by circulation system, with mixing function, make the water bath temperature uniform without dead Angle, high temperature control accuracy.

4, safety performance: automatic diagnosis, over temperature alarm and automatically cut off the power supply of the heater, the test is completed with alarm function.

5, With on-line adjustment function, can effectively correct the deviation of pressure and temperature sensor.

Main technical parameters

1, power source: AC220V ±10% 50Hz

2. Heating work rate: 1.8KW

3, stirring motor power: 15W

4, temperature control range: room temperature ~ 90℃

5, temperature control precision: ≤±0.1℃

6, pressure fan: 0 ~ 200kPa

7. Number of hanging shells: 2 shells

8, the number of rotation Angle: the automatic rotation Angle of the instrument is 350°

9. Sensor: PT100

10. External size: 900 × 450 × 650 weight:50kg


1. Power supply: AC(220±10%)V, 50Hz
2. Heating work rate : ≤1800W
3. Stirring motor power : 15W
4. Temperature control range : room temperature ~ 90℃
5. Temperature control accuracy: ±0.1ºC
6. Number of hanging shells 2 shells
7. Pressure range: (0~200)kPa or (0~29)psi
8. The number of rotation Angle the automatic rotation Angle of the instrument is 350°
9.Relative humidity: ≤85%
10.Dimension: 900 × 450 × 650 weight:50kg

Packing list

S/N Name Unit quantity Remarks
1 Vapor pressure meter set 1
2 Steam bomb set 2
3 Pressure gauge piece 2
4 Temperature sensor piece 1
5 Instruction copy 1
6 Packing list copy 1
7 Certificate warranty card copy 1

ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method 0ASTMD323 Fully Auto Petroleum Products Saturated Vapor Pressure Tester Reid Method 1

Company Introduction

Shandong Shengtai Instruments Co., Ltd. is specialized in the research and production of experimental testing instruments and industrial testing instruments. It is a professional instrument company integrating instrument research and development, manufacturing, sales and service. Its products are widely used in food, flour, grain and oil, Feed, electricity, petrochemical, industrial oil, aerospace, coal quality and other industries.

For more than 10 years, Shengtai has always been adhering to the "first-class service, customer first" as the purpose, "reasonable price, honesty and trustworthiness" as the business policy. Adhere to technical innovation, with rich knowledge of the technical team and experienced, thoughtful after-sales service team.

Shengtai instrument as one of the most large-scale and competitive enterprises in the industry, with the strength of technology research and development, professional technical knowledge and innovative design concept, in the model improvement, Significant technical breakthrough has been achieved in the development of function expansion and intelligent control system.

OUR service

After-sales service commitment, our company to sell the product after-sales service commitment: warranty period of one year, long-term technical support outside the warranty period. During the warranty period, the seller shall bear the cost of the replacement of the equipment, the freight and maintenance of the instrument; outside the warranty period, the seller shall waive the maintenance fee and charge only the cost of the basic materials and freight charges when the instrument is malfunctioning and the seller shall not charge the maintenance fee during the warranty period.
